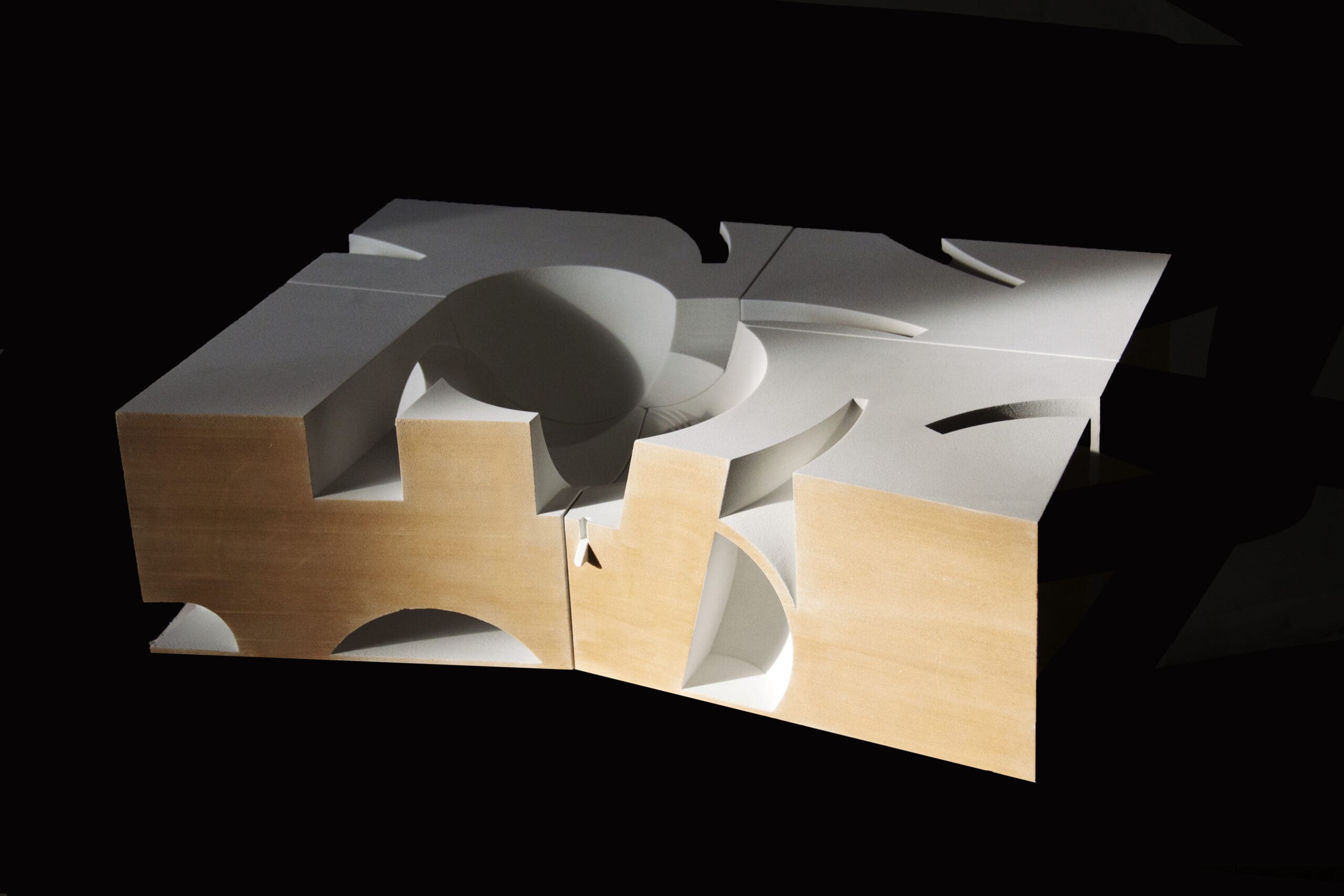

Cover image

Mumbai City Museum North Wing

Mumbai, India.

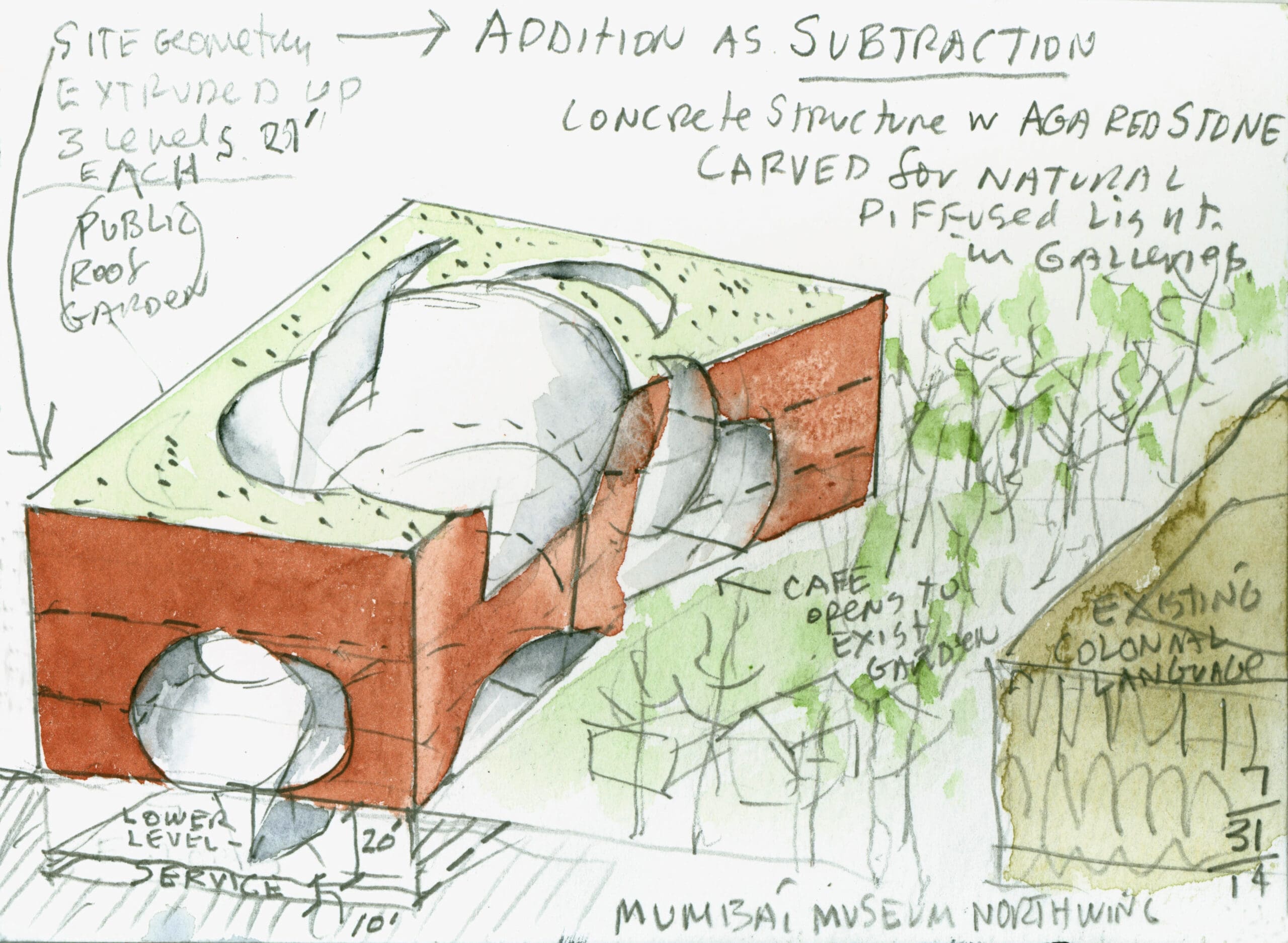

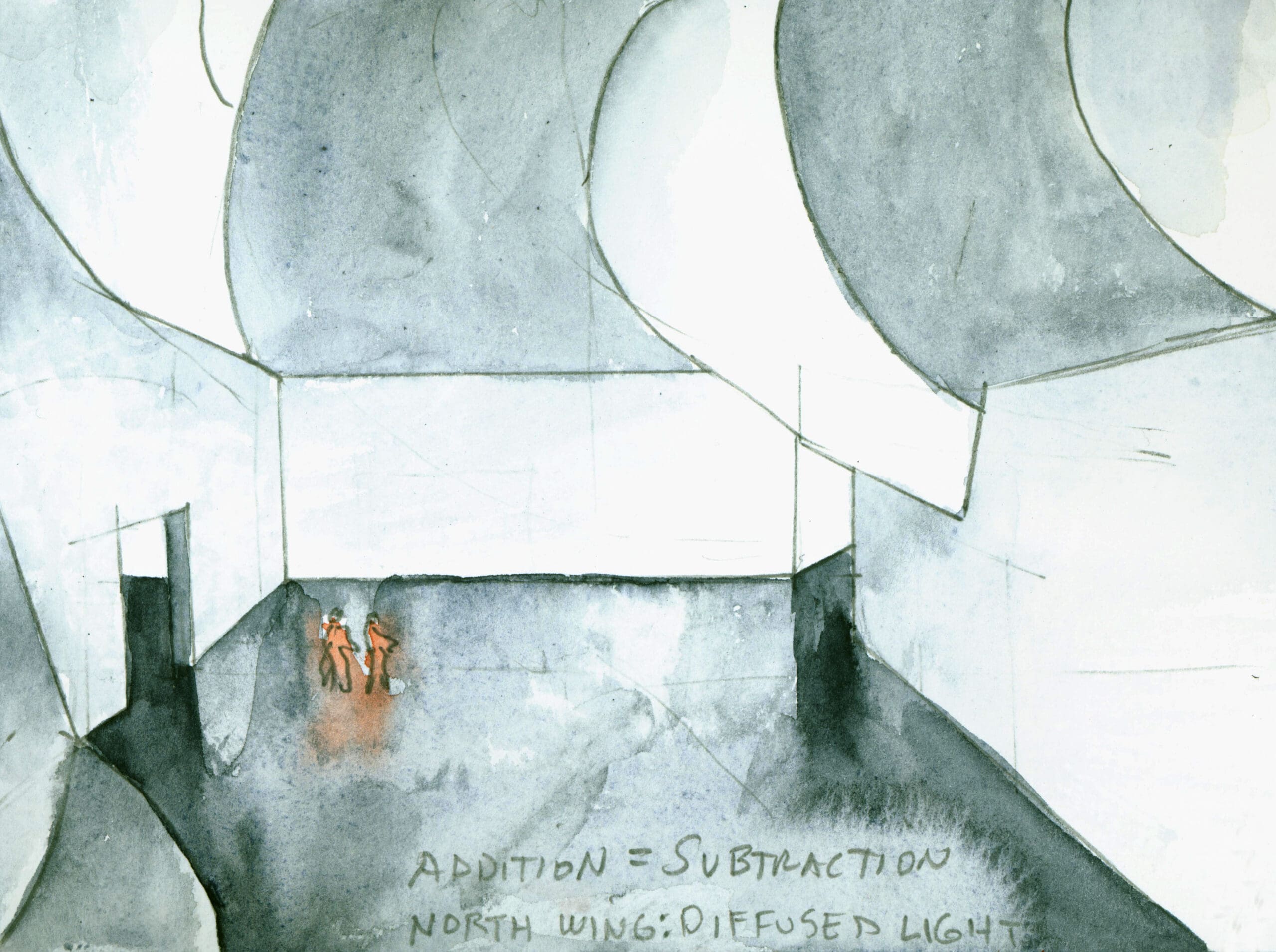

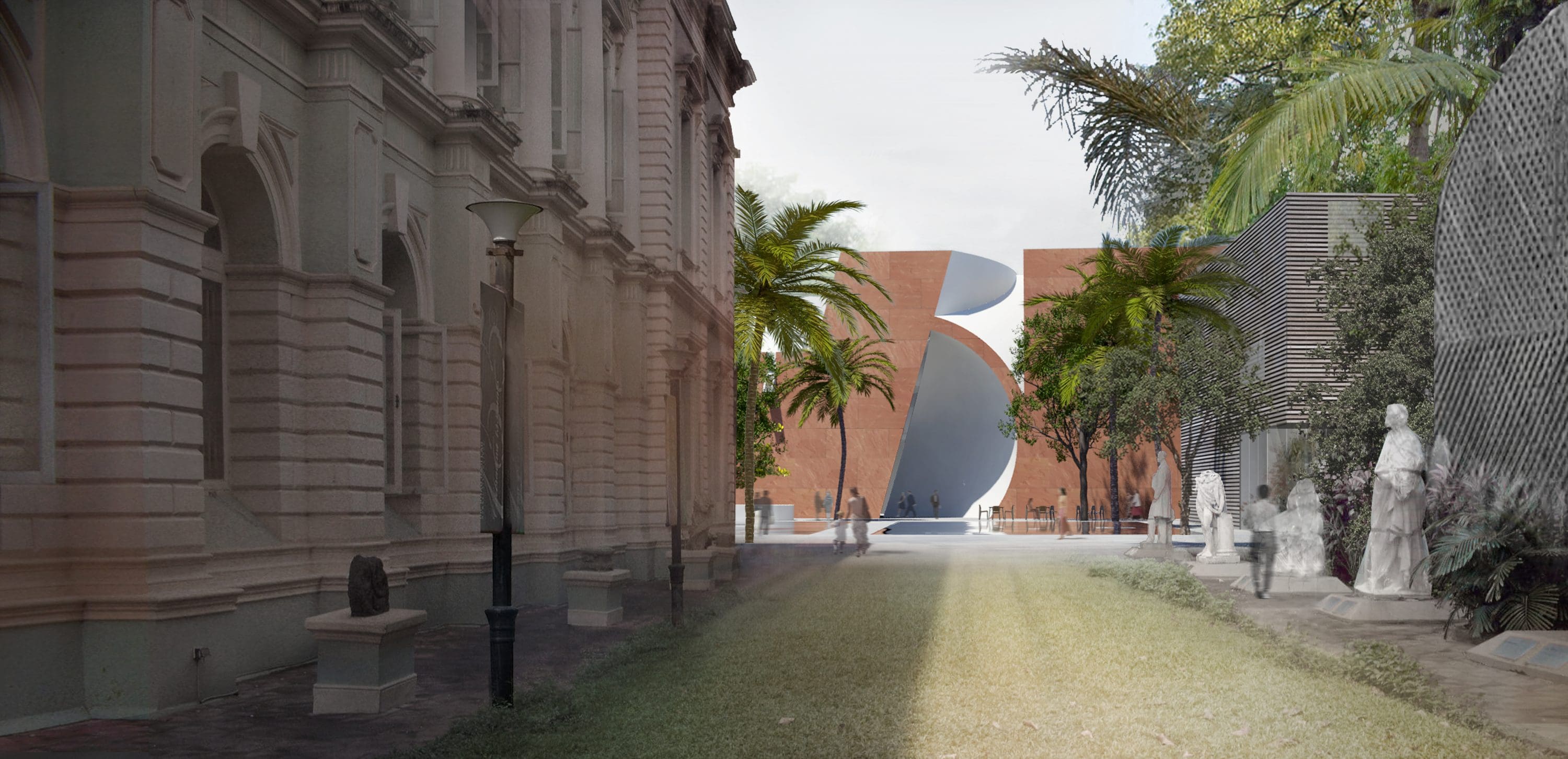

Mumbai’s oldest museum garden in Byculla will have a 125,000 sq ft new wing. The Mumbai City Museum’s North Wing addition is envisioned as a sculpted subtraction from a simple geometry formed by the site boundaries. The concept of “Addition as Subtraction” is developed in white concrete with sculpted diffused light in the 65,000 sq ft new gallery spaces. Deeper subtractive cuts bring in exactly twenty-five lumens of natural light to each gallery.

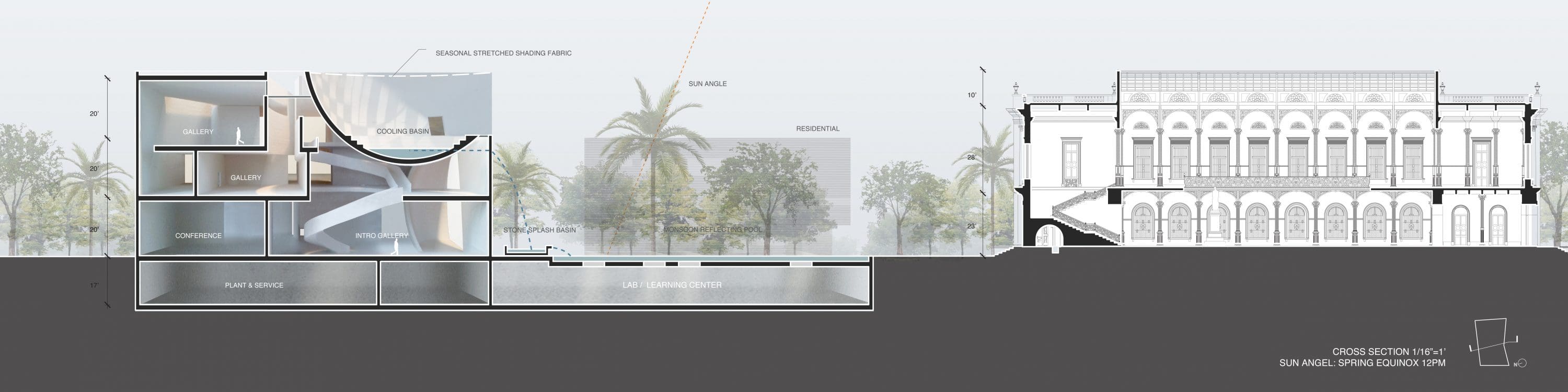

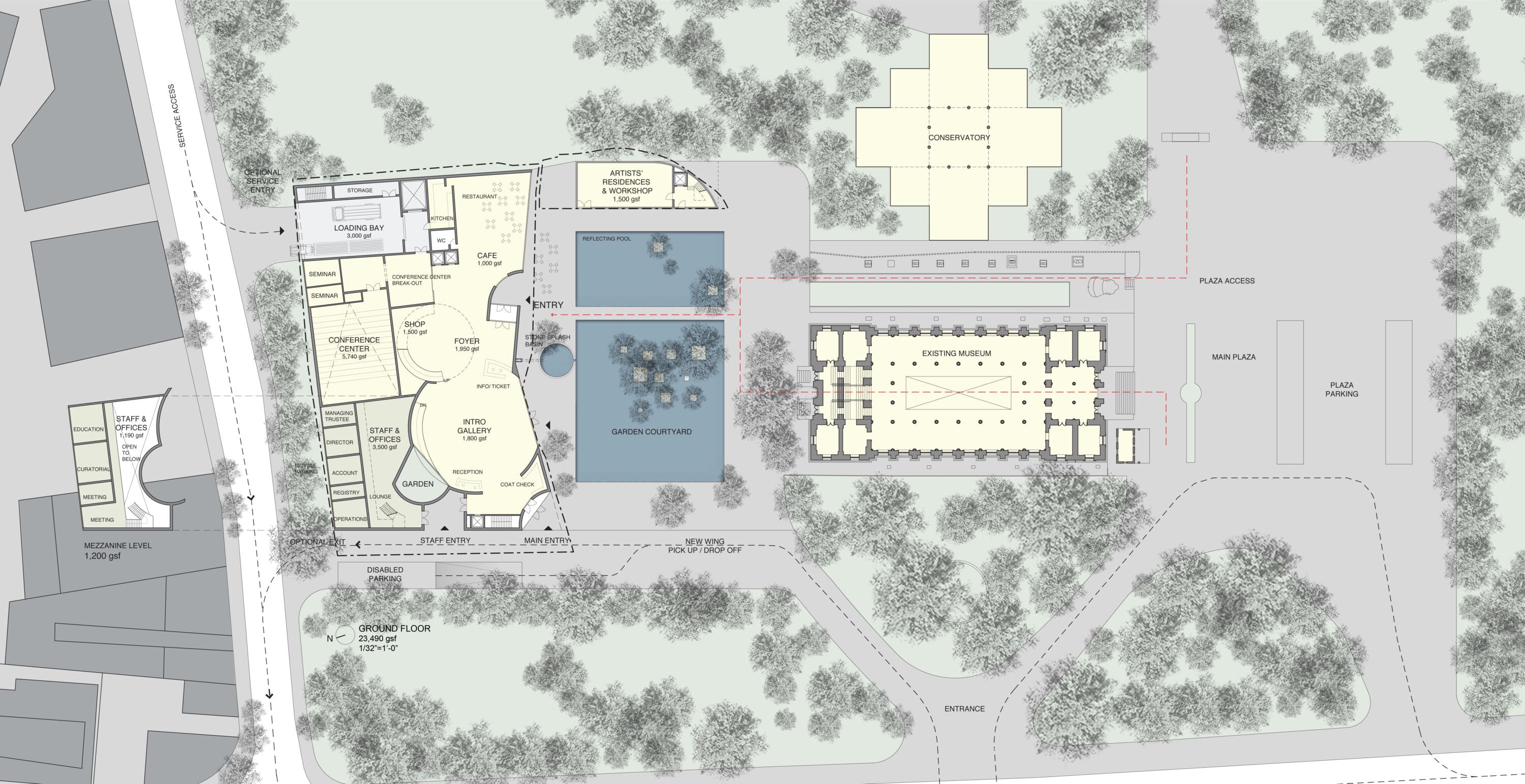

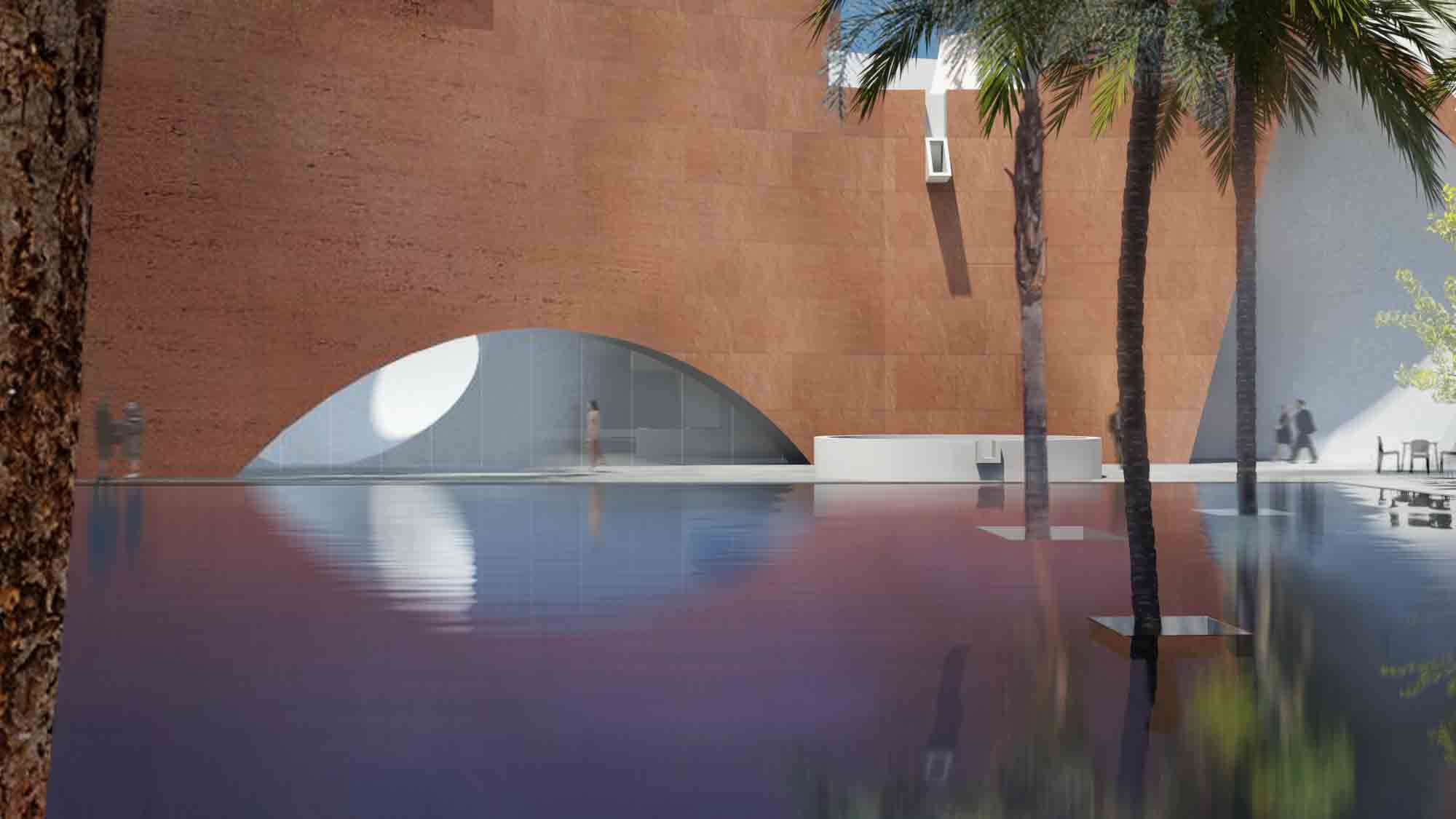

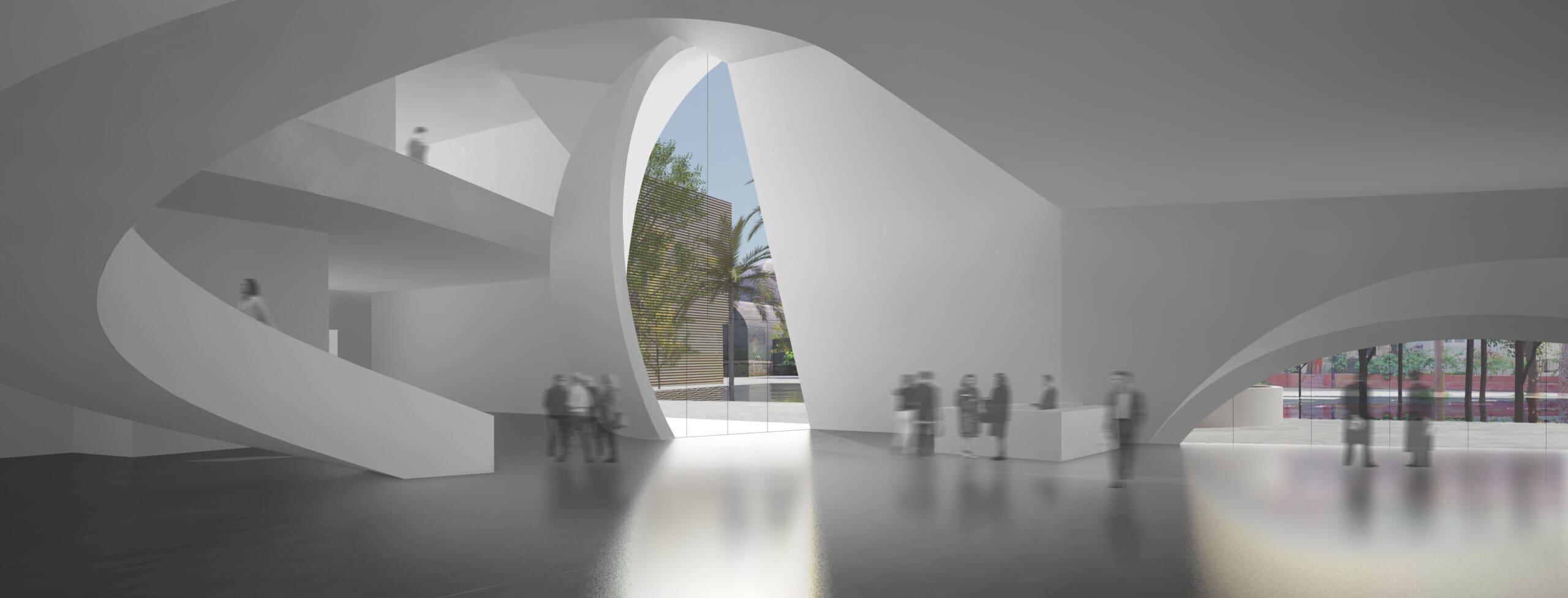

The basically orthogonal galleries are given a sense of flow and spatial overlap from the light cuts. The central cut forms a shaded monsoon water basin which runs into a central pool, related to the great stepped well architecture of India. The central pool joins the new and old in its reflection and provides sixty percent of the museum’s electricity through photovoltaic cells located below the water’s surface. The white concrete structure has an extension of local rough-cut Indian Agra stone. The circulation through the galleries is one of spatial energy, while the orthogonal layout of the walls foregrounds the Mumbai City Museum collections.

This is the first time that an international architectural competition has been held for a public building in Mumbai. The initiative will also create the first major public-private partnership building in the city.

Location
Mumbai, India.
Years
2014–2016
Size
125,000 sq ft
Status
On hold
architect
Steven Holl Architects
Steven Holl (design architect, principal)
Noah Yaffe (partner in charge)
Chris McVoy (project advisor, senior partner)
Yun Shi (project architect)
Xi Chen, Michael Haddy, Filipe Taboada (project team)
associate architects
Opolis Architects
Rahul Gore, Sonal Sanchetti (principal)
structural engineer
Guy Nordenson & Associates
sustainability engineer
Transsolar
lighting consultant
L'Observatoire International

Timeline

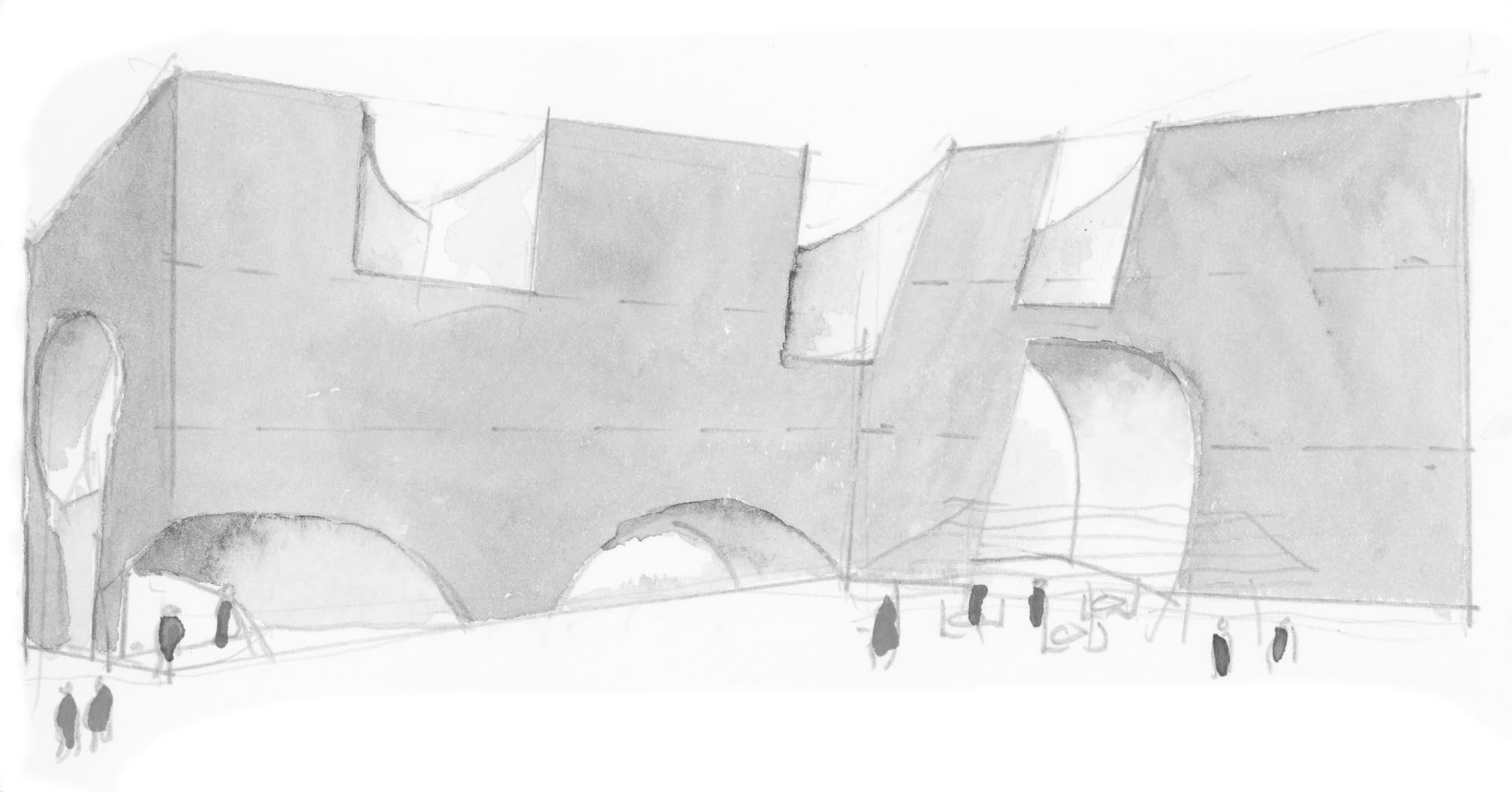

Watercolor Image
