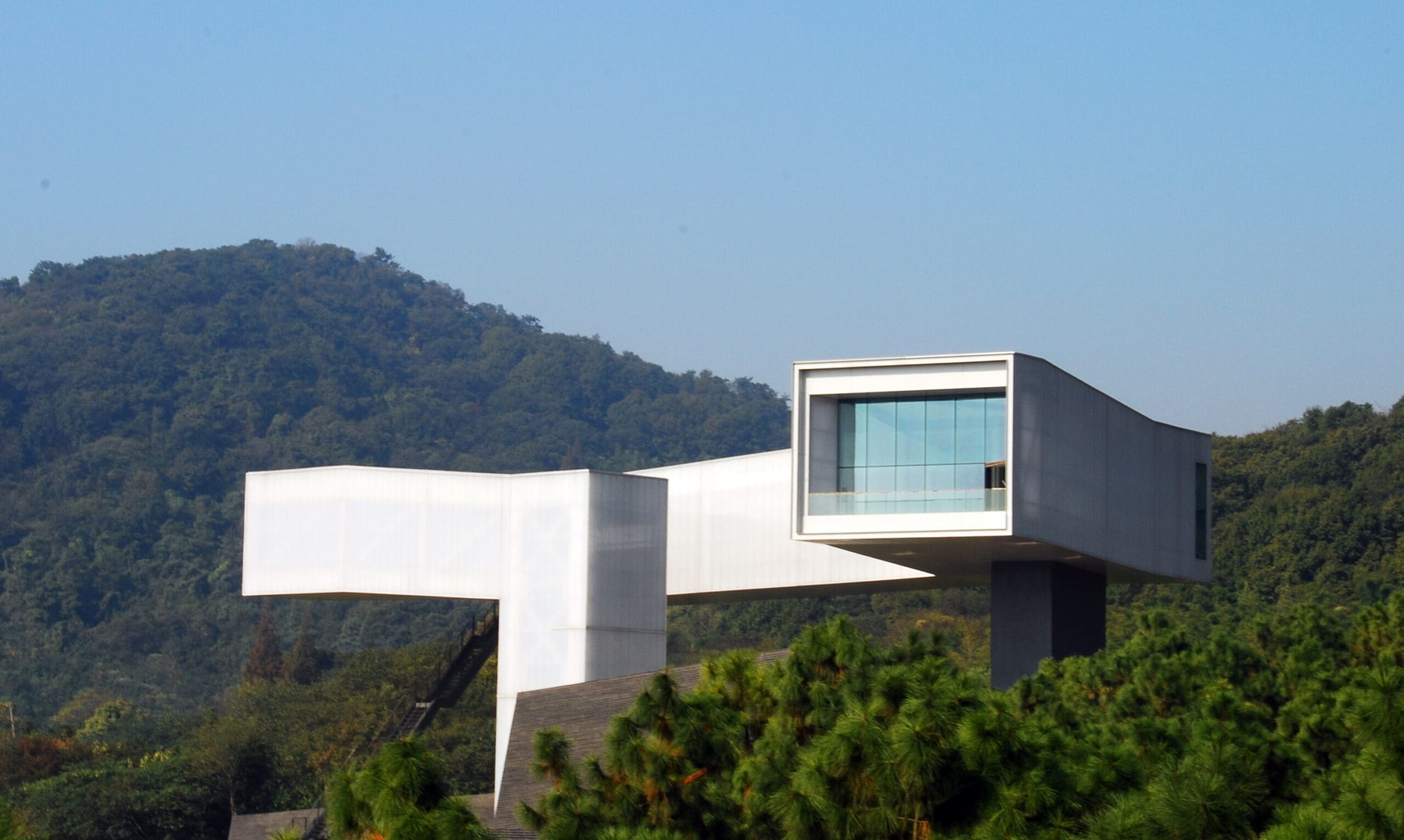

Cover image

Nanjing Sifang Art Museum

Nanjing, People's Republic of China.

The new museum is sited at the gateway to the Contemporary International Practical Exhibition of Architecture in the lush green landscape of the Pearl Spring near Nanjing, China. The museum explores the shifting viewpoints, layers of space, and expanses of mist and water, which characterize the deep alternating spatial mysteries of early Chinese painting.

Nanjing Museum Interview with Yitiao TV

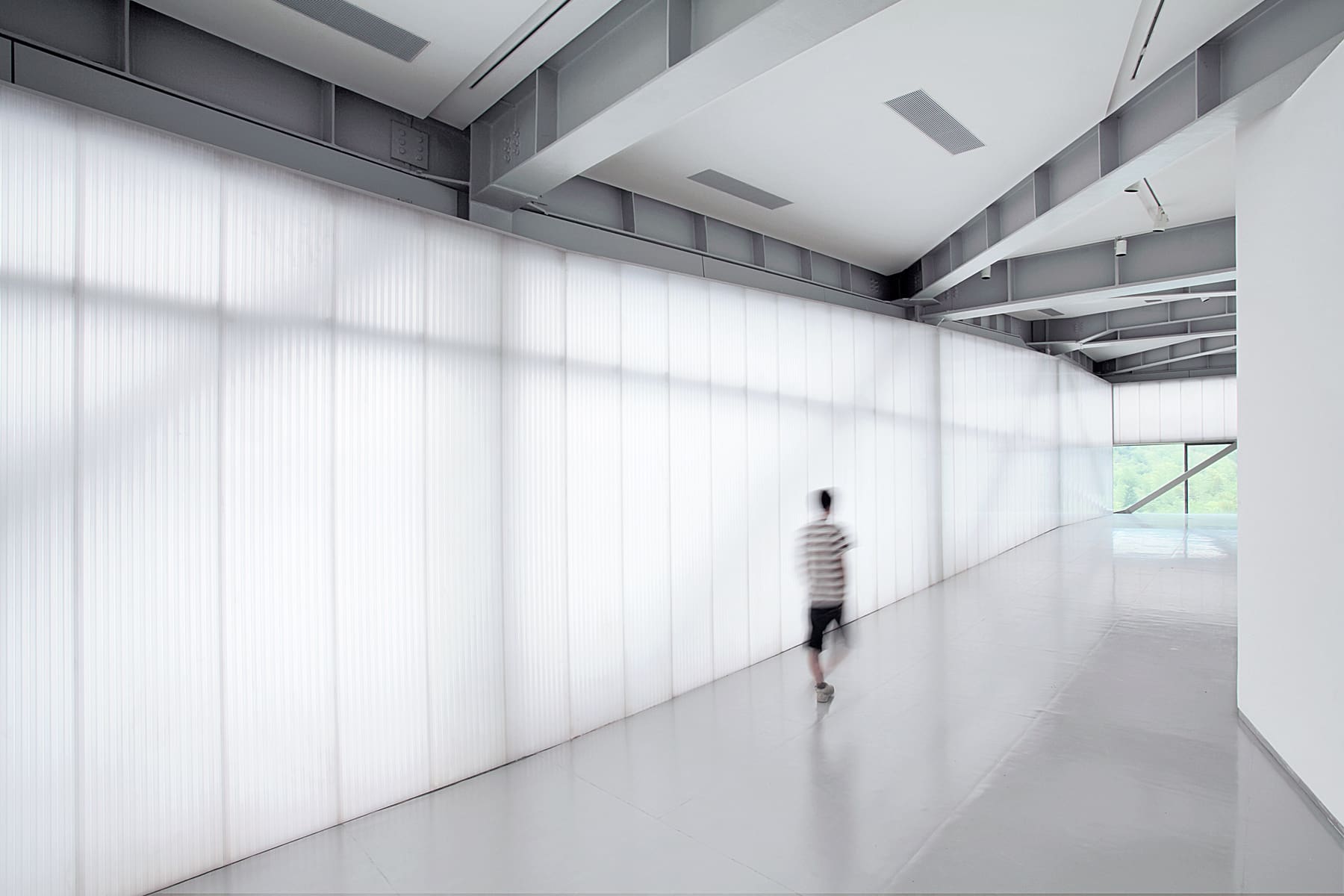

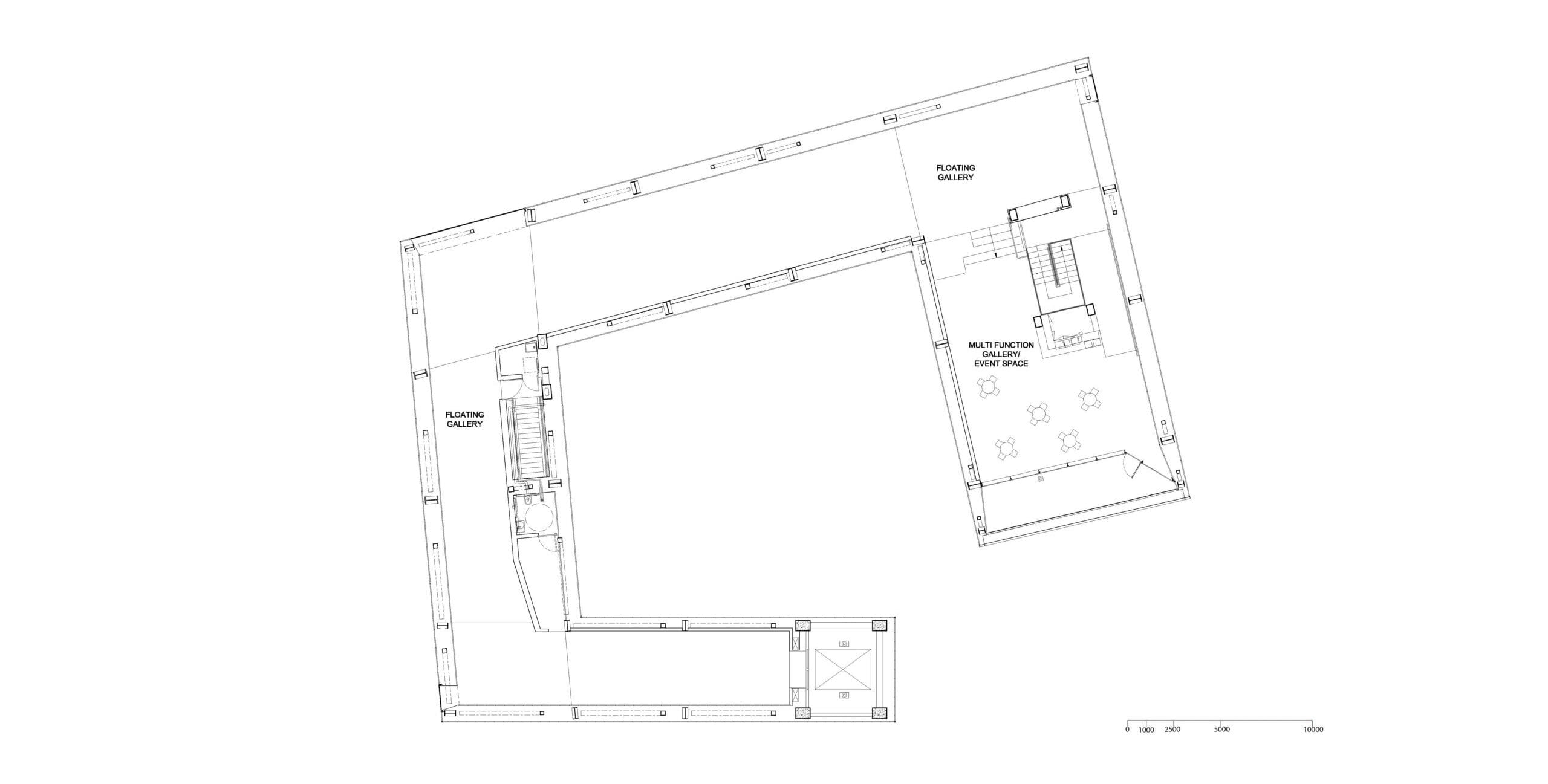

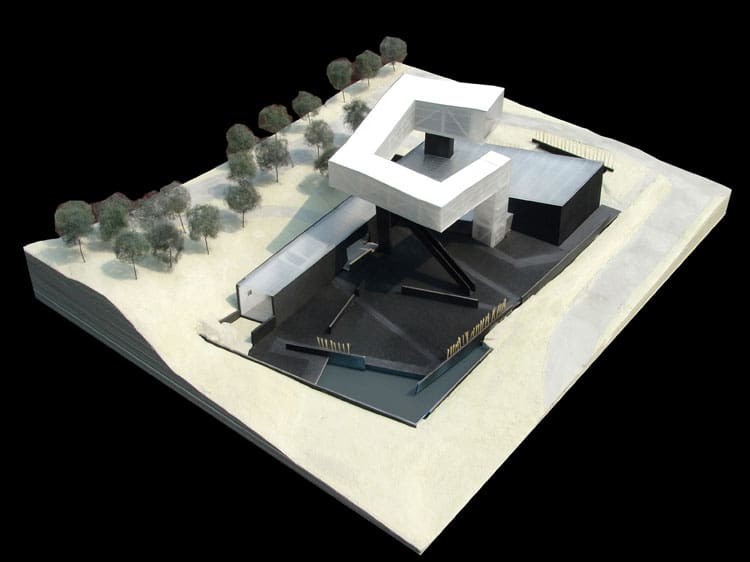

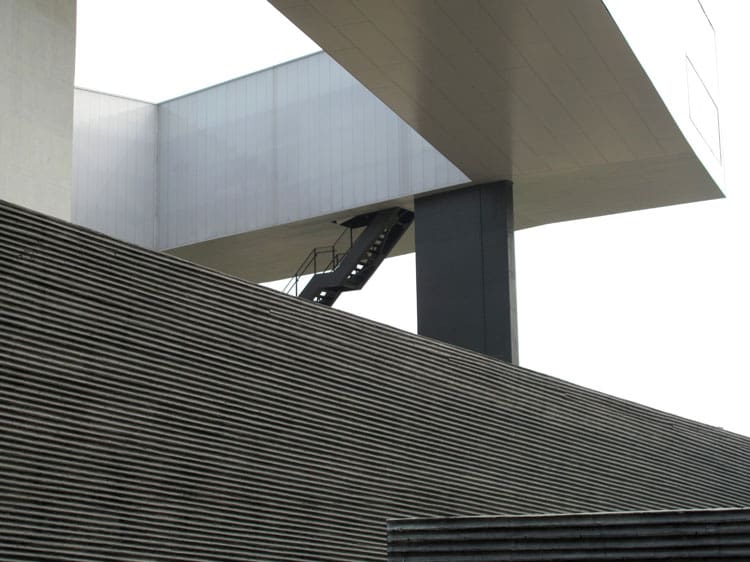

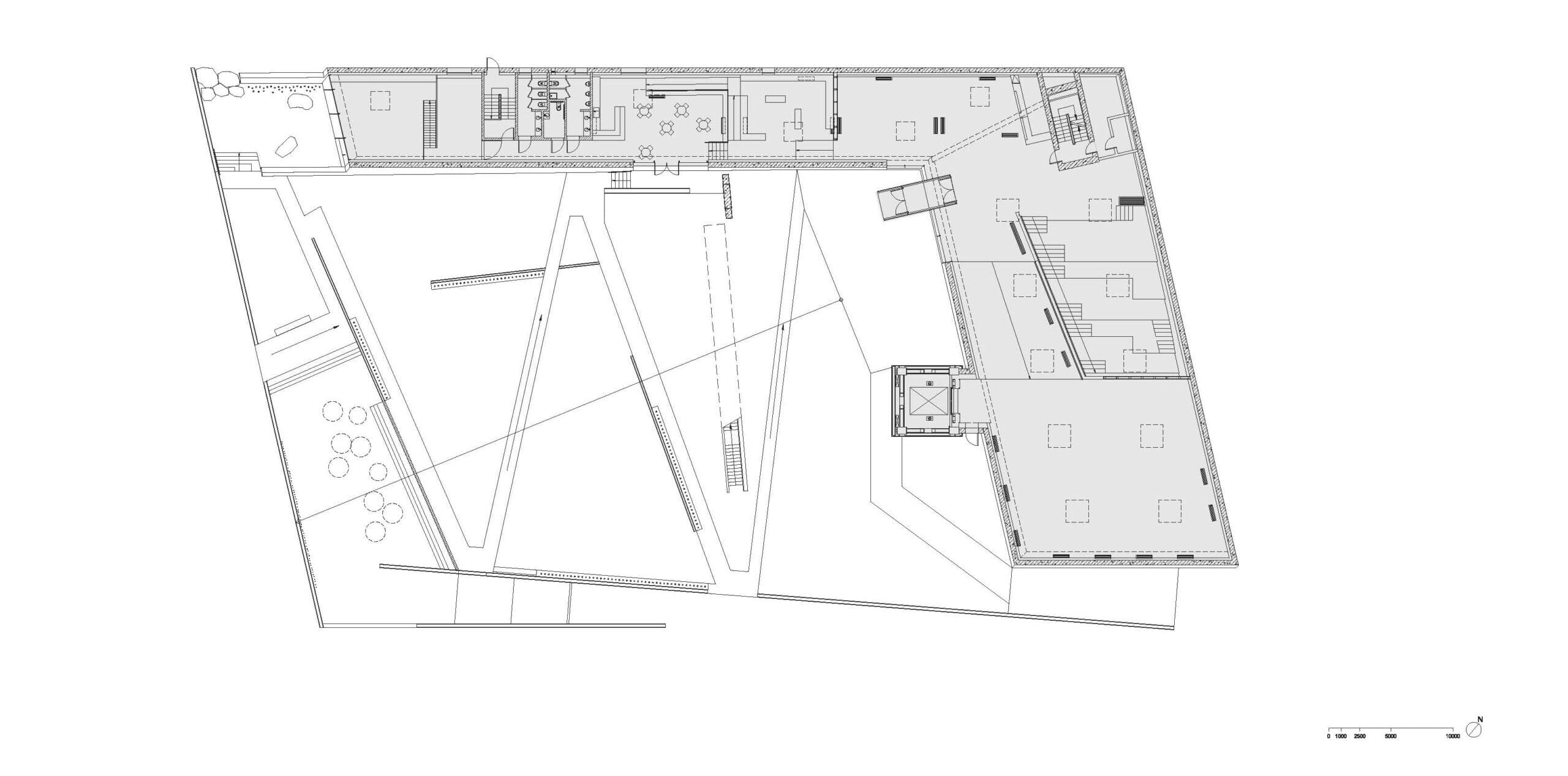

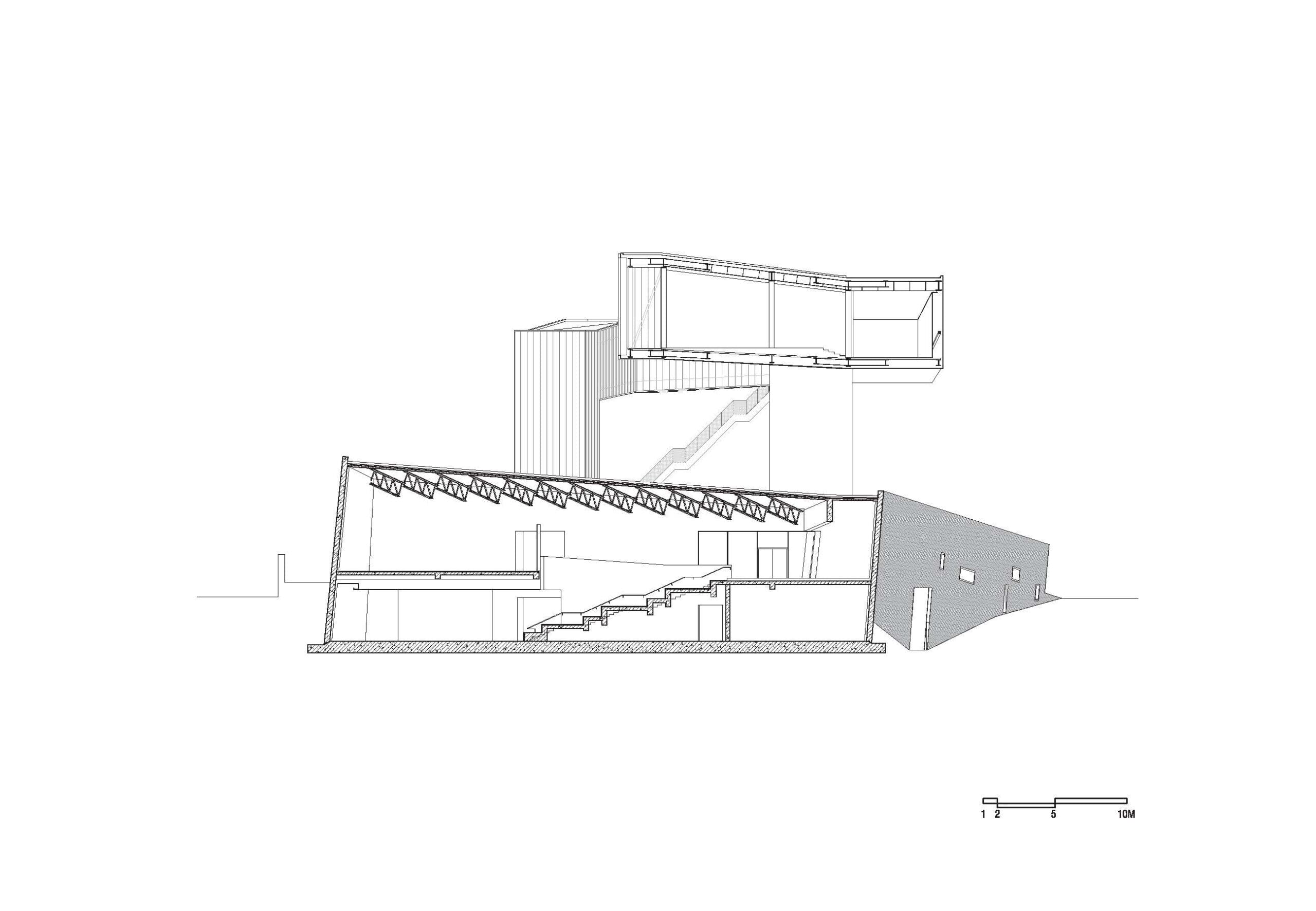

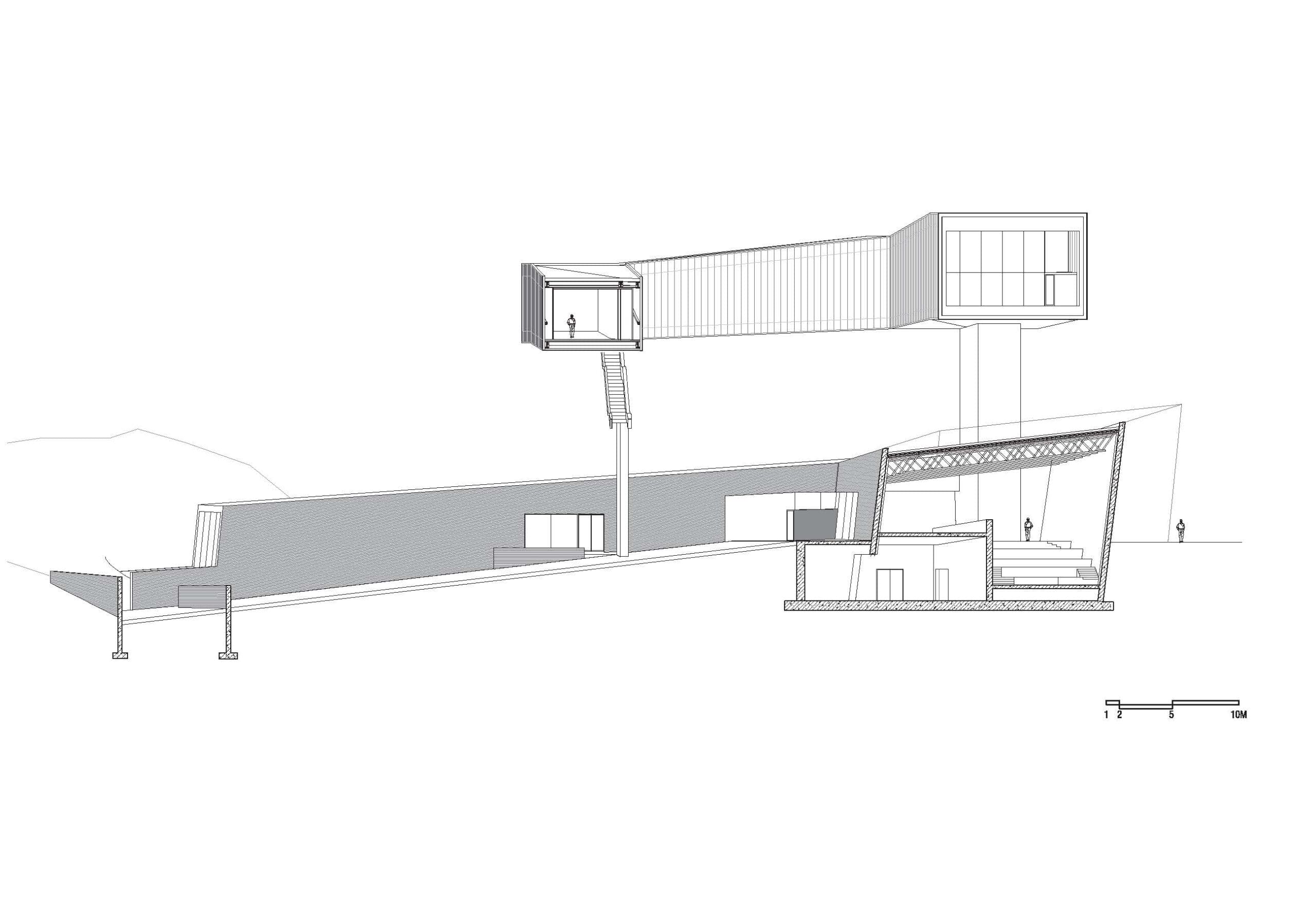

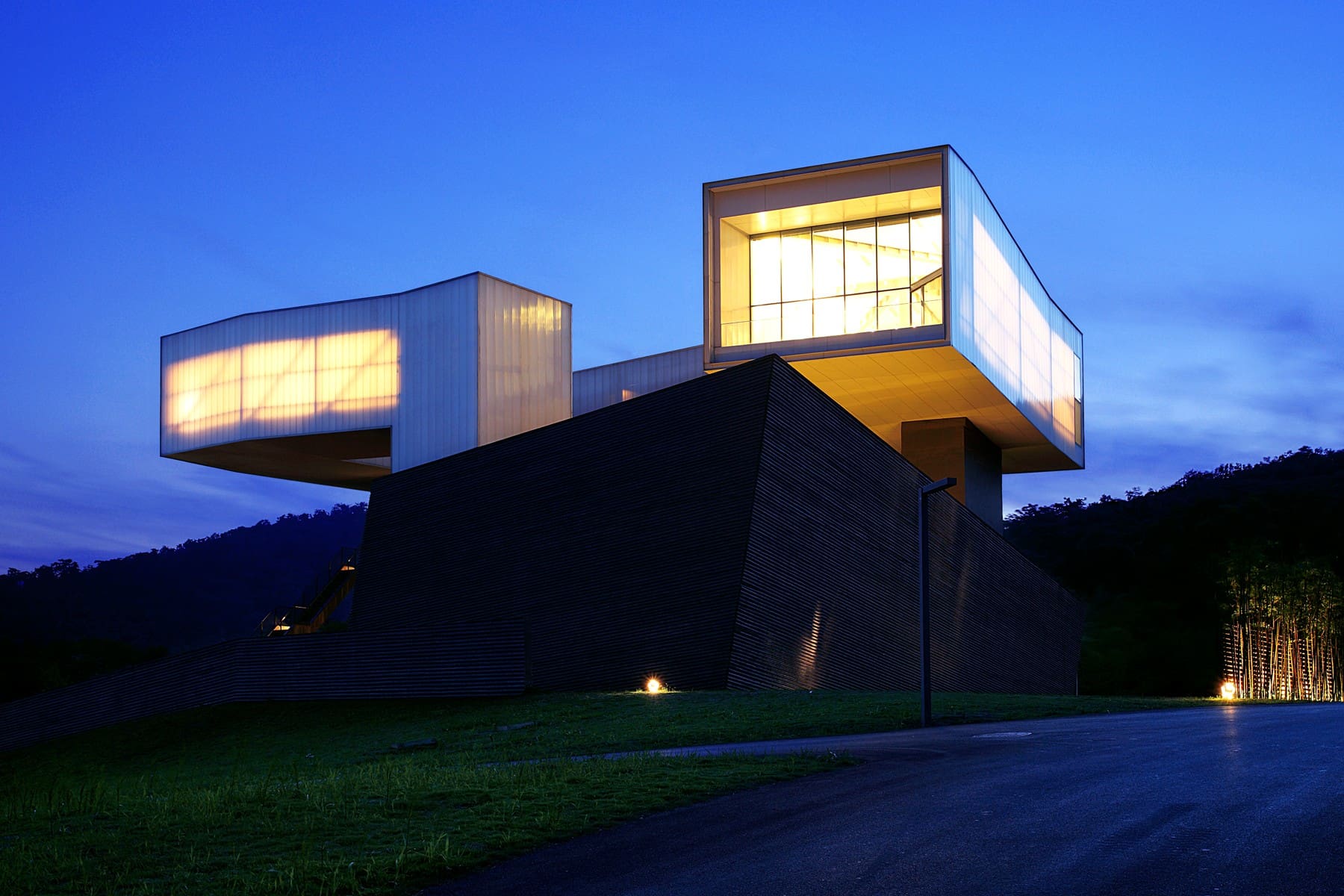

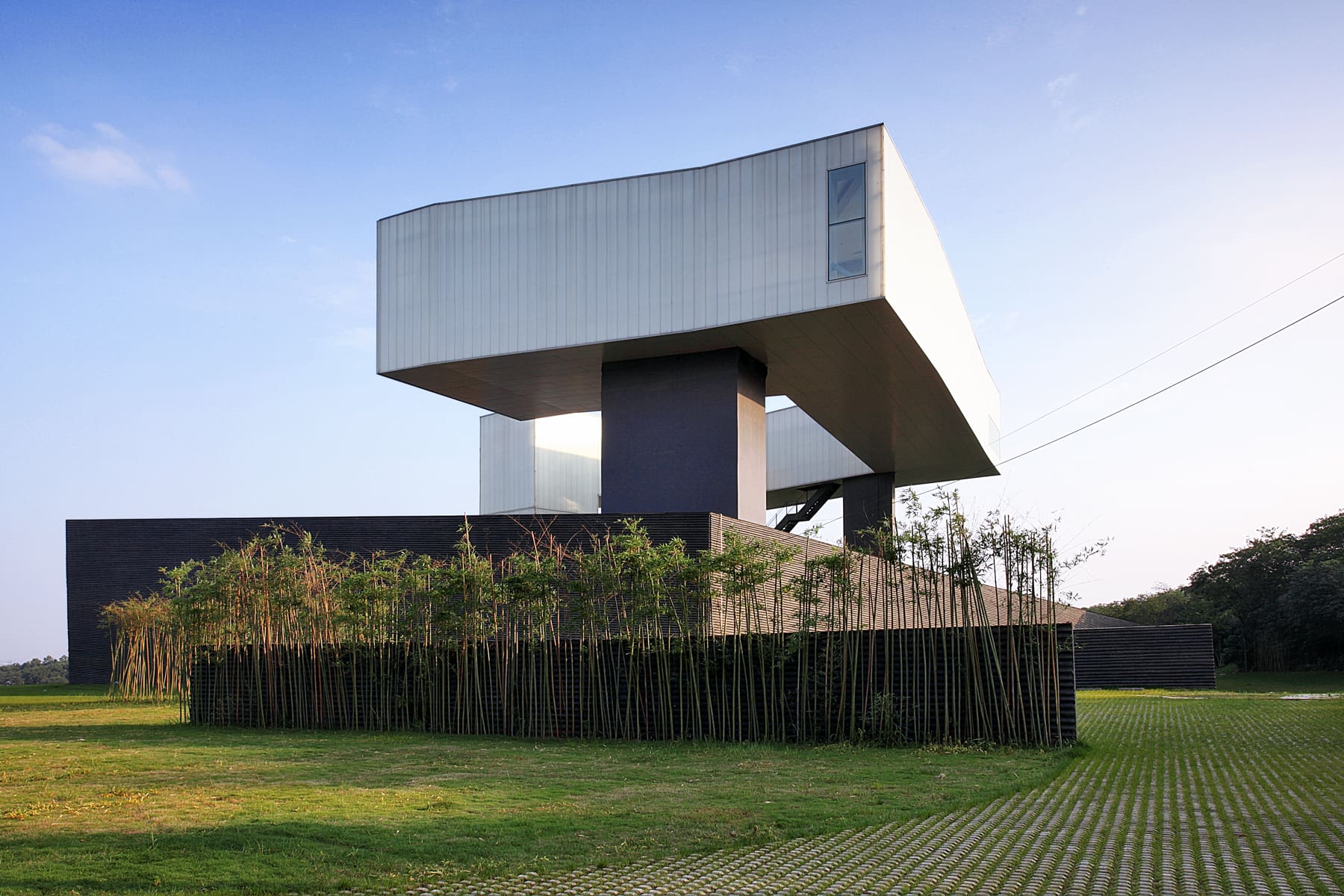

The museum is formed by a “field” of parallel perspective spaces and garden walls in black bamboo-formed concrete over which a light “figure” hovers. The straight passages on the ground level gradually turn into the winding passage of the figure above. The upper gallery, suspended high in the air, unwraps in a clockwise turning sequence and culminates at “in-position” viewing of the city of Nanjing in the distance. The meaning of this rural site becomes urban through this visual axis to the great Ming Dynasty capital city, Nanjing.

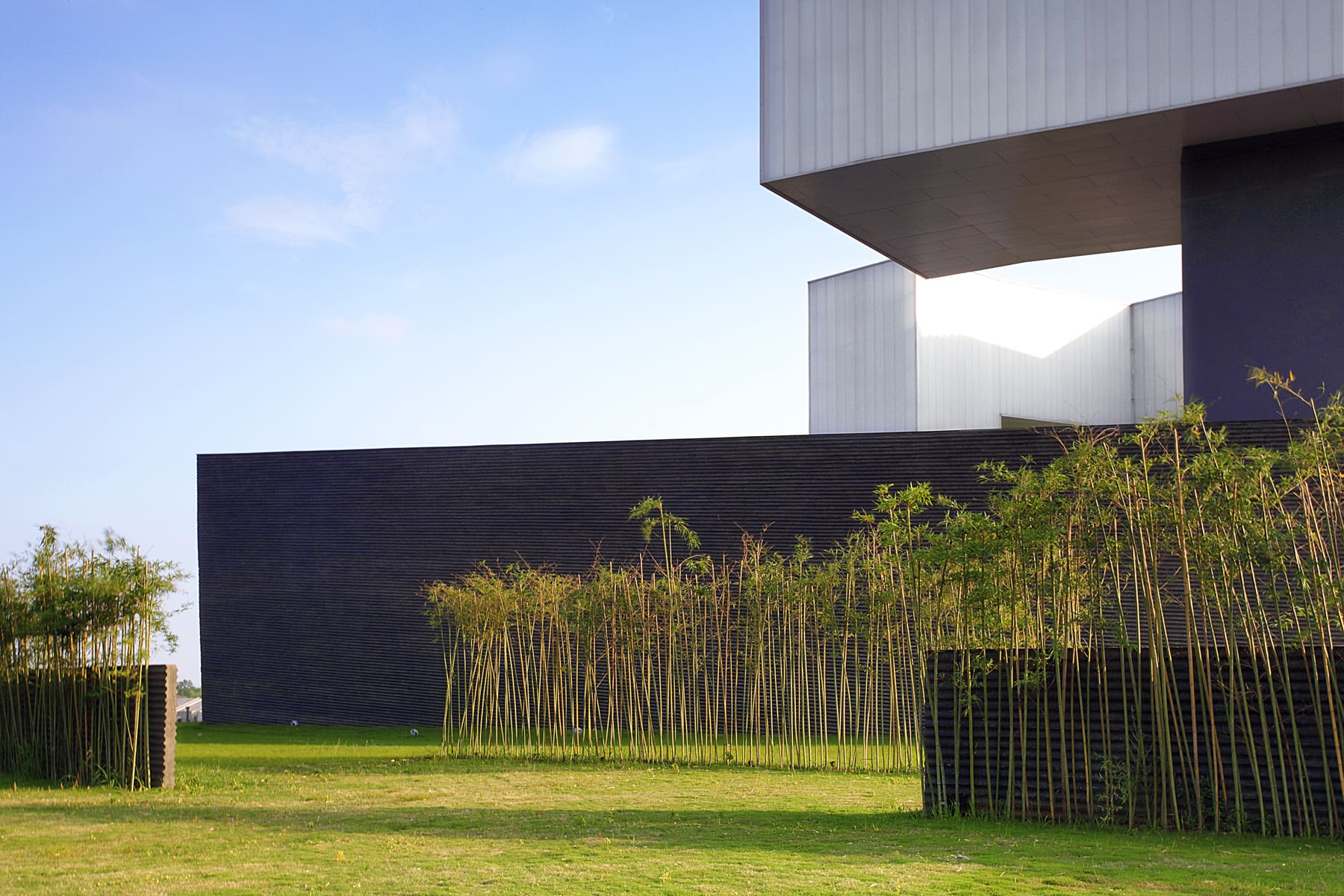

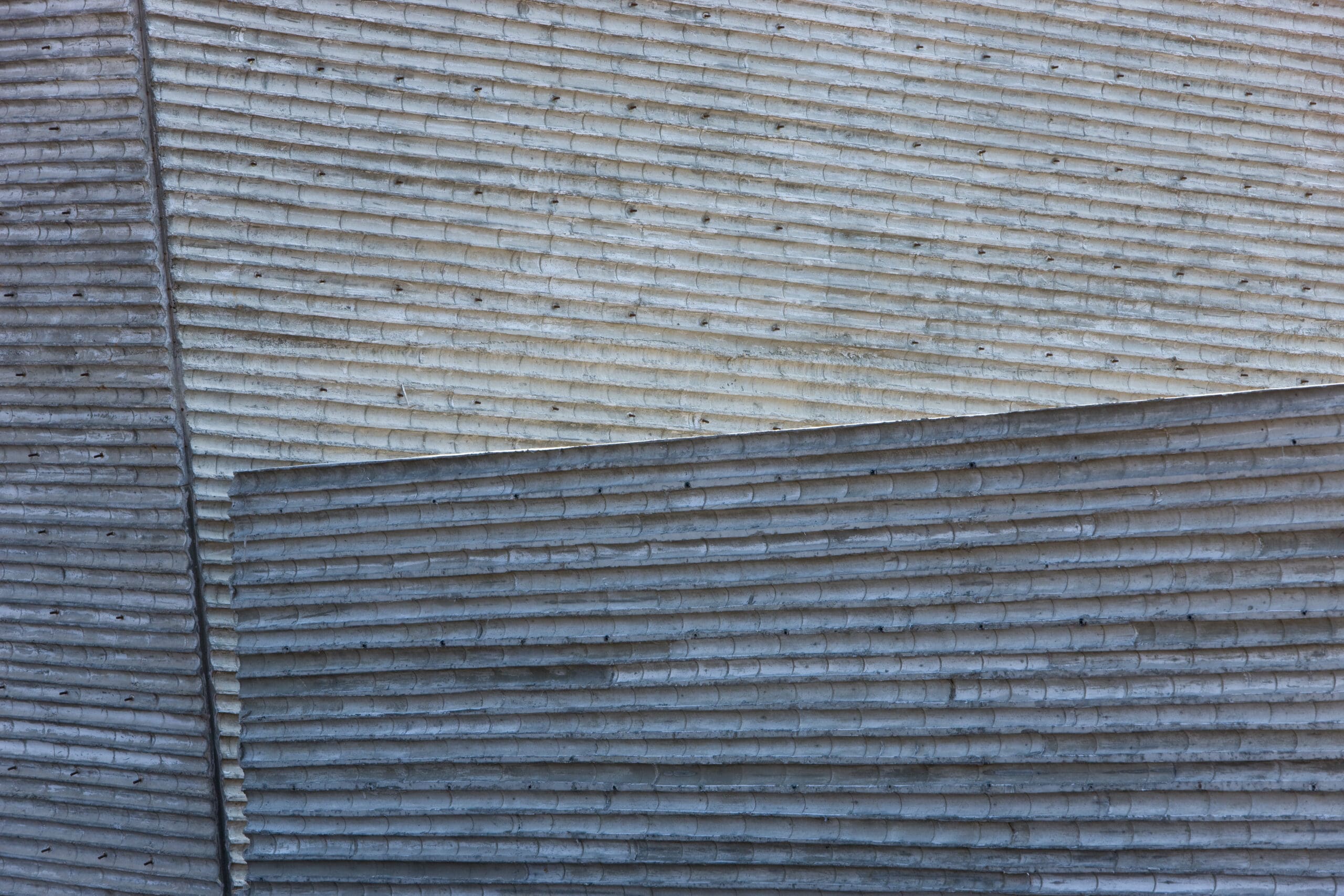

The courtyard is paved in recycled Old Hutong bricks from the destroyed courtyards in the center of Nanjing. Limiting the colors of the museum to black and white connects it to the ancient paintings, but also gives a background to feature the colors and textures of the artwork and architecture to be exhibited within. Bamboo, previously growing on the site, has been used in bamboo- formed concrete, with a black penetrating stain. The Museum has geothermal cooling and heating, and recycled storm water.

Client
Nanjing Foshou Lake Architecture and Art Developments Ltd
Location
Nanjing, People's Republic of China.
Years
2003–2013
Size
30,000 sq ft
Status
Complete
architect
Steven Holl Architects
Steven Holl, Li Hu (design architect)
Li Hu (partner in charge)
Hideki Hirahara (associate-in-charge)
Clark Manning, Daijiro Nakayama (project architect)
Joseph Kan, JongSeo Lee, Pei Shyun Lee, Tz-Li Lin, Richard Liu, Sarah Nichols (project team)
Architectural Design Institute, Nanjing University
structural consultant
Guy Nordenson and Associates
lighting design
L'Observatoire International
