DAEYANG GALLERY AND HOUSE
2012
Description +
PROGRAM: residential and art gallery
CLIENT: Daeyang Shipping Co. Ltd.
SIZE: 10,703 sq ft
STATUS: Complete

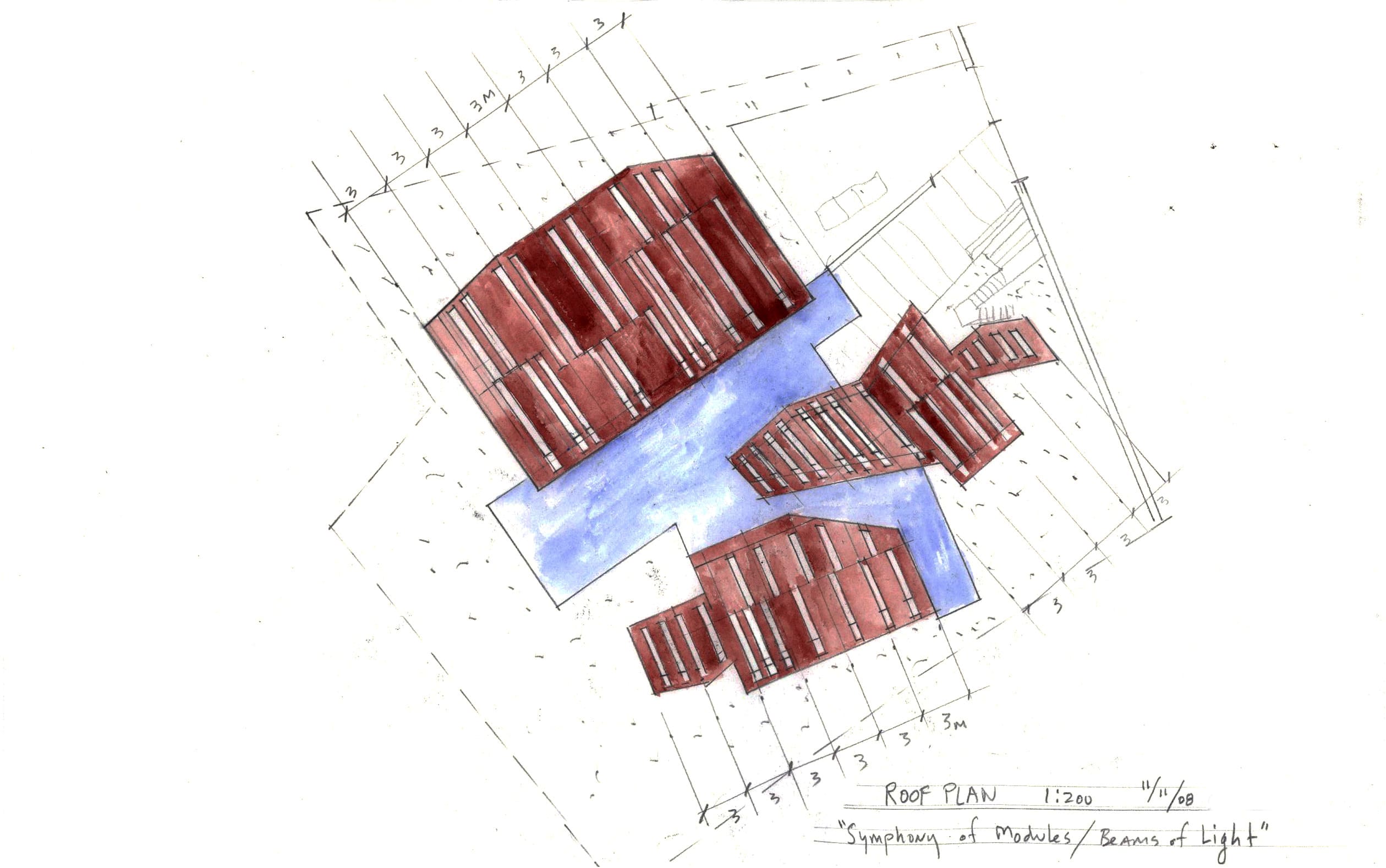

The private gallery and house is sited in the hills of the Gangbuk section of Seoul, Korea. The basic geometry of the building is inspired by a 1967 sketch for a music score by the composer Istvan Anhalt, “Symphony of Modules,” discovered in a book by John Cage titled “Notations.”

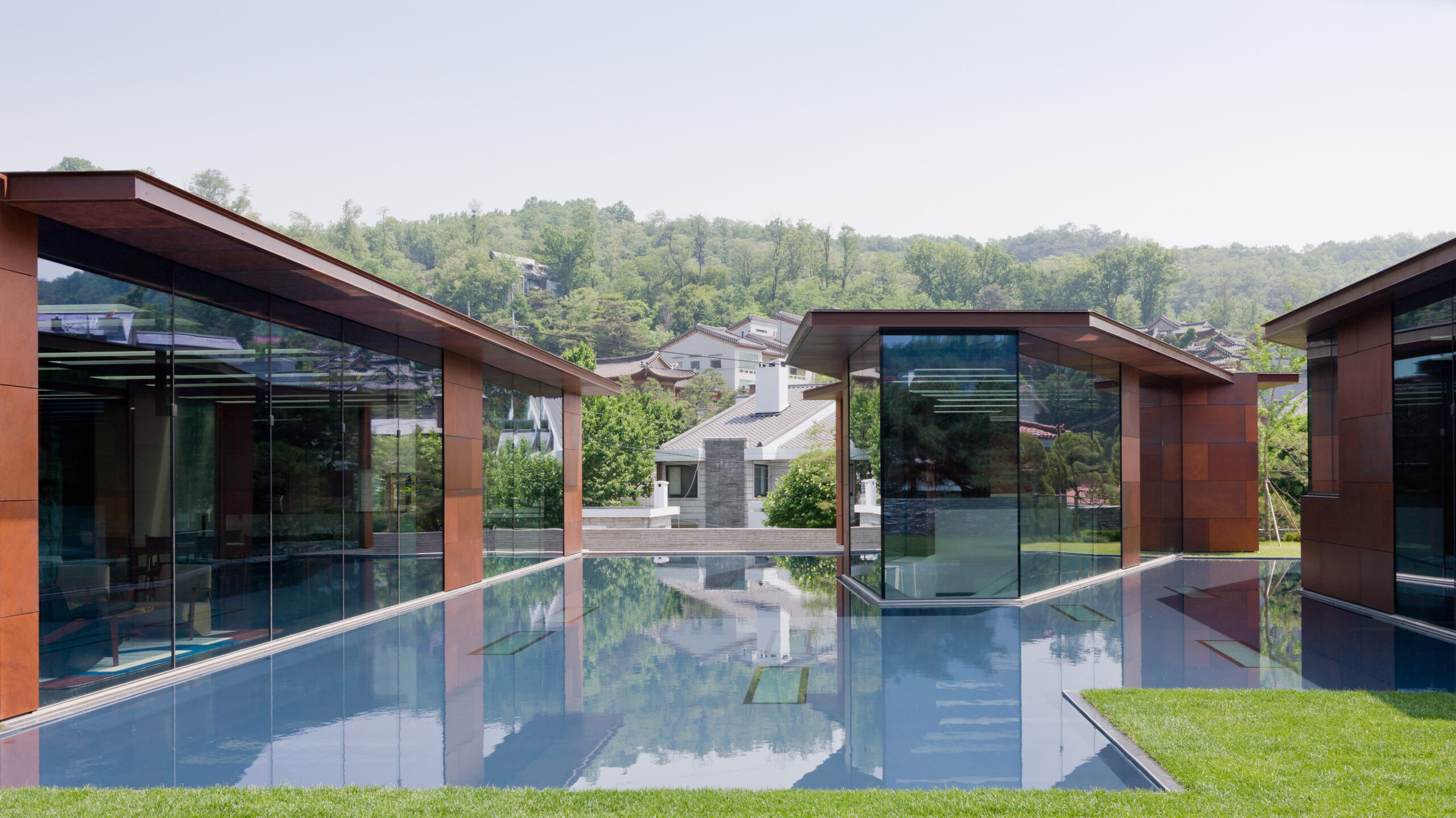

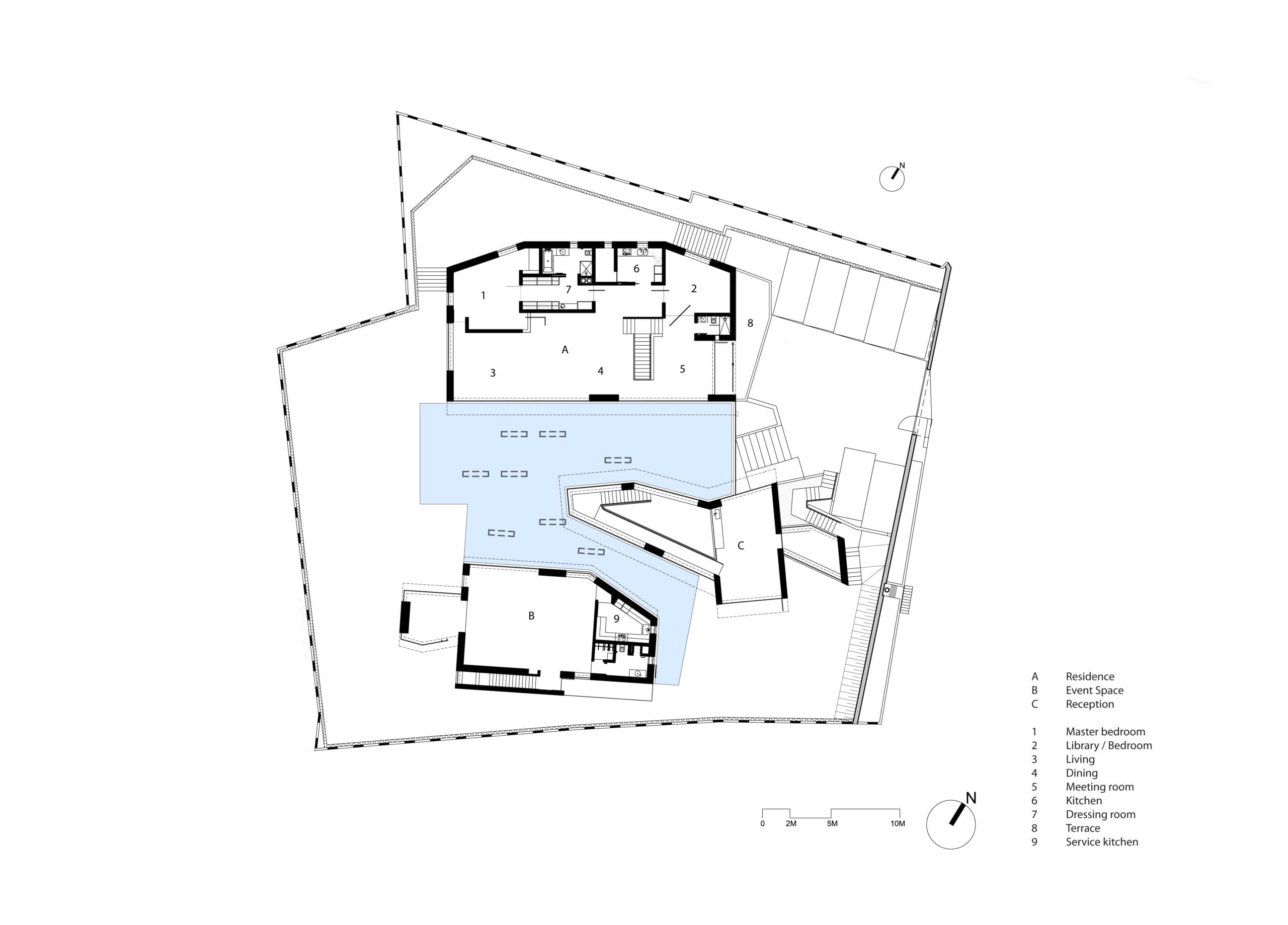

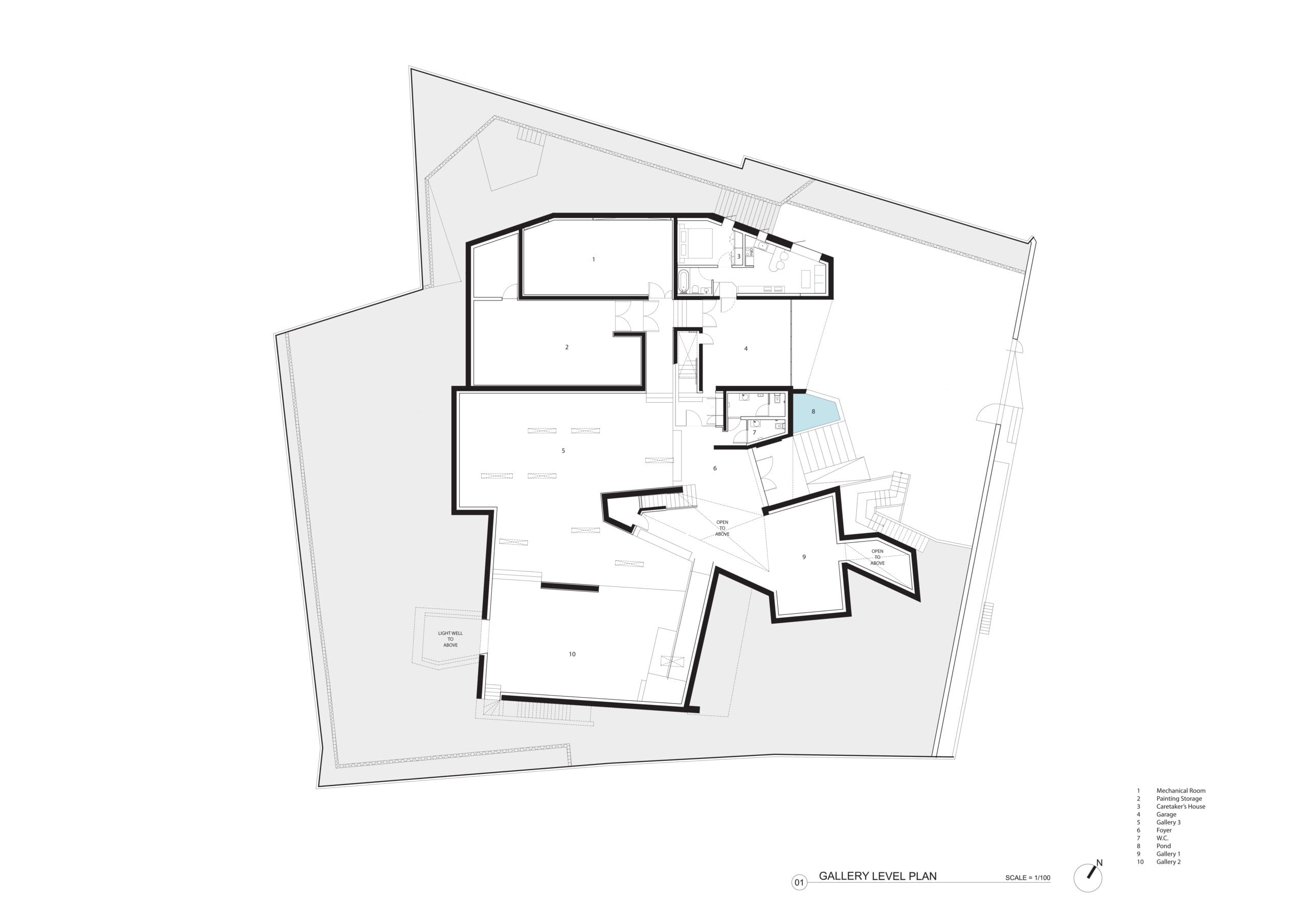

Three pavilions; one for entry, one residence, and one event space, appear to push upward from a continuous gallery level below. A sheet of water establishes the plane of reference from above and below.

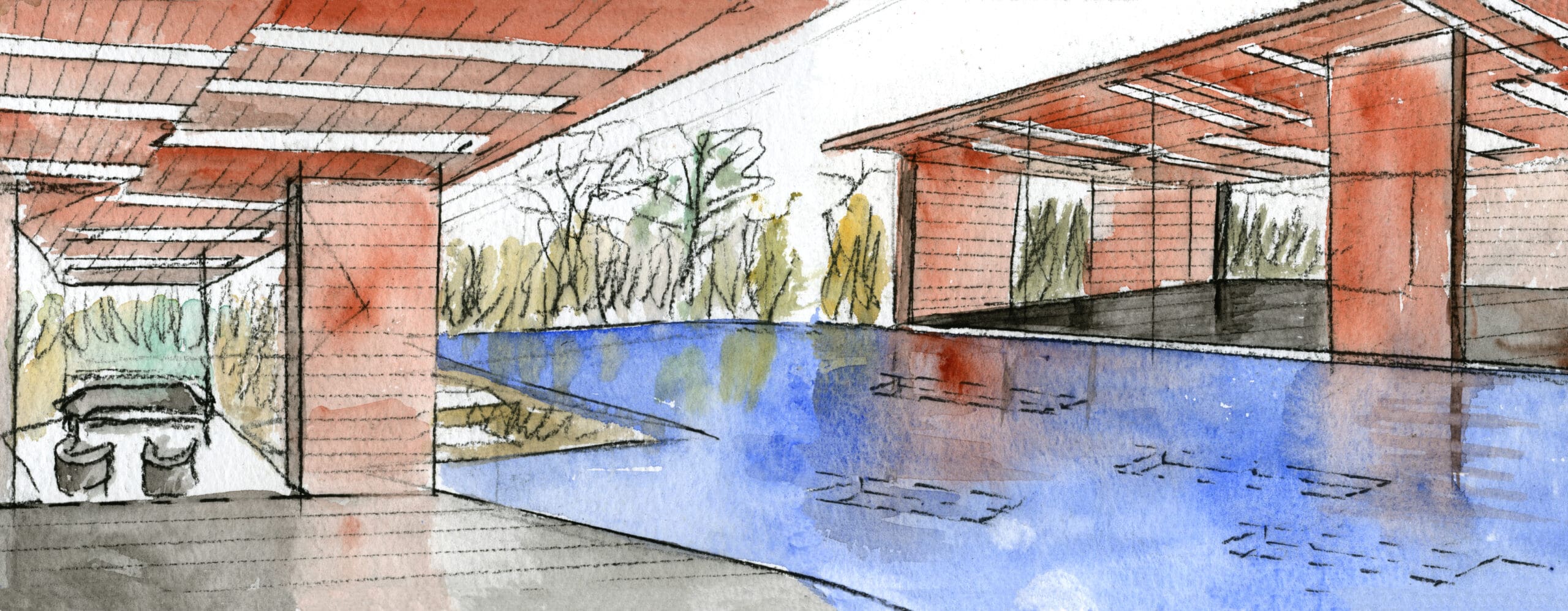

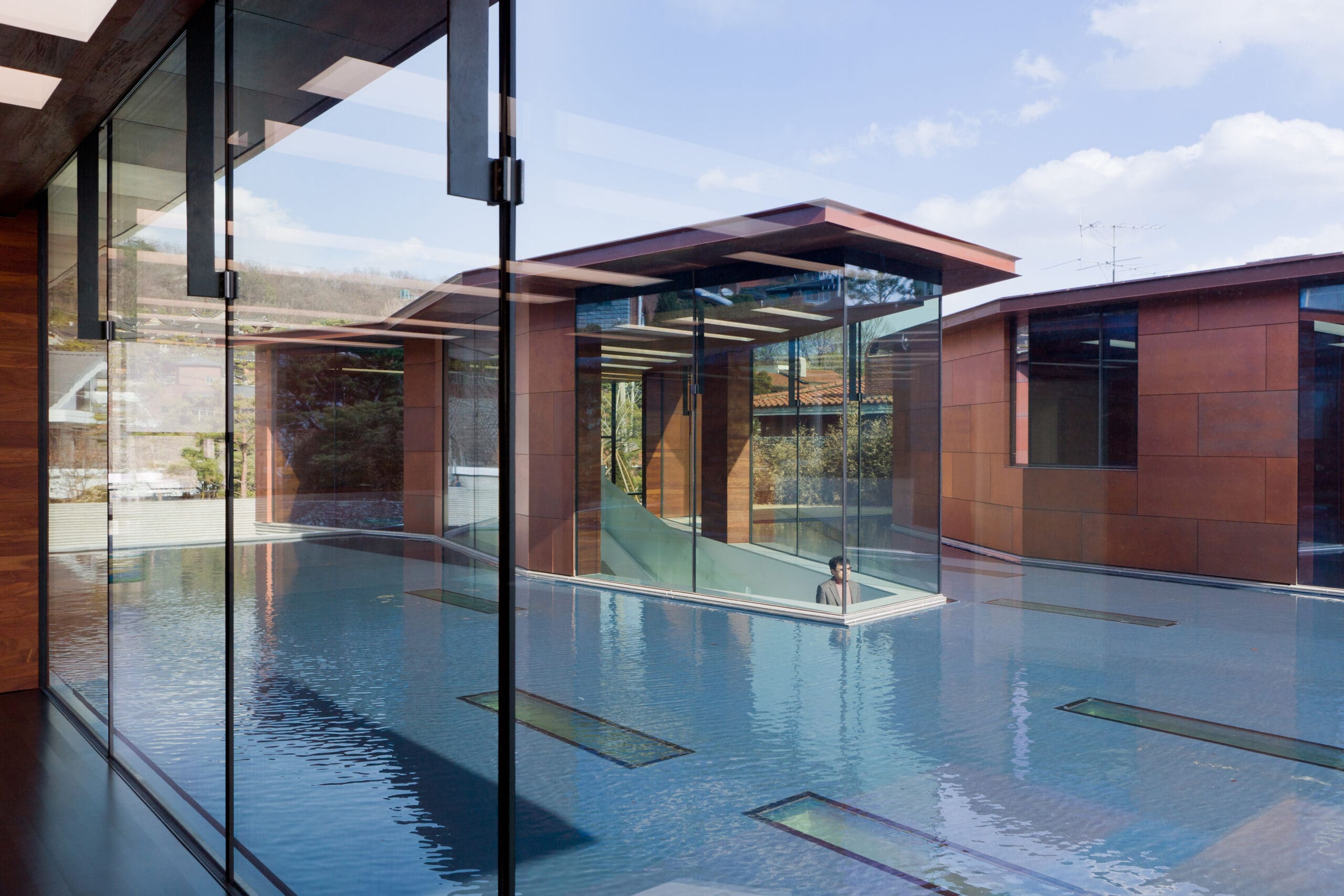

After passing through a bamboo formed garden wall at the entry court, ascending steps into the entry pavilion bring the viewer at elbow height with the unifying sheet of water. Here, at the center of this place is an inner feeling with the sky, water, vegetation and the reddened patina of the copper walls all reflected in different ways.

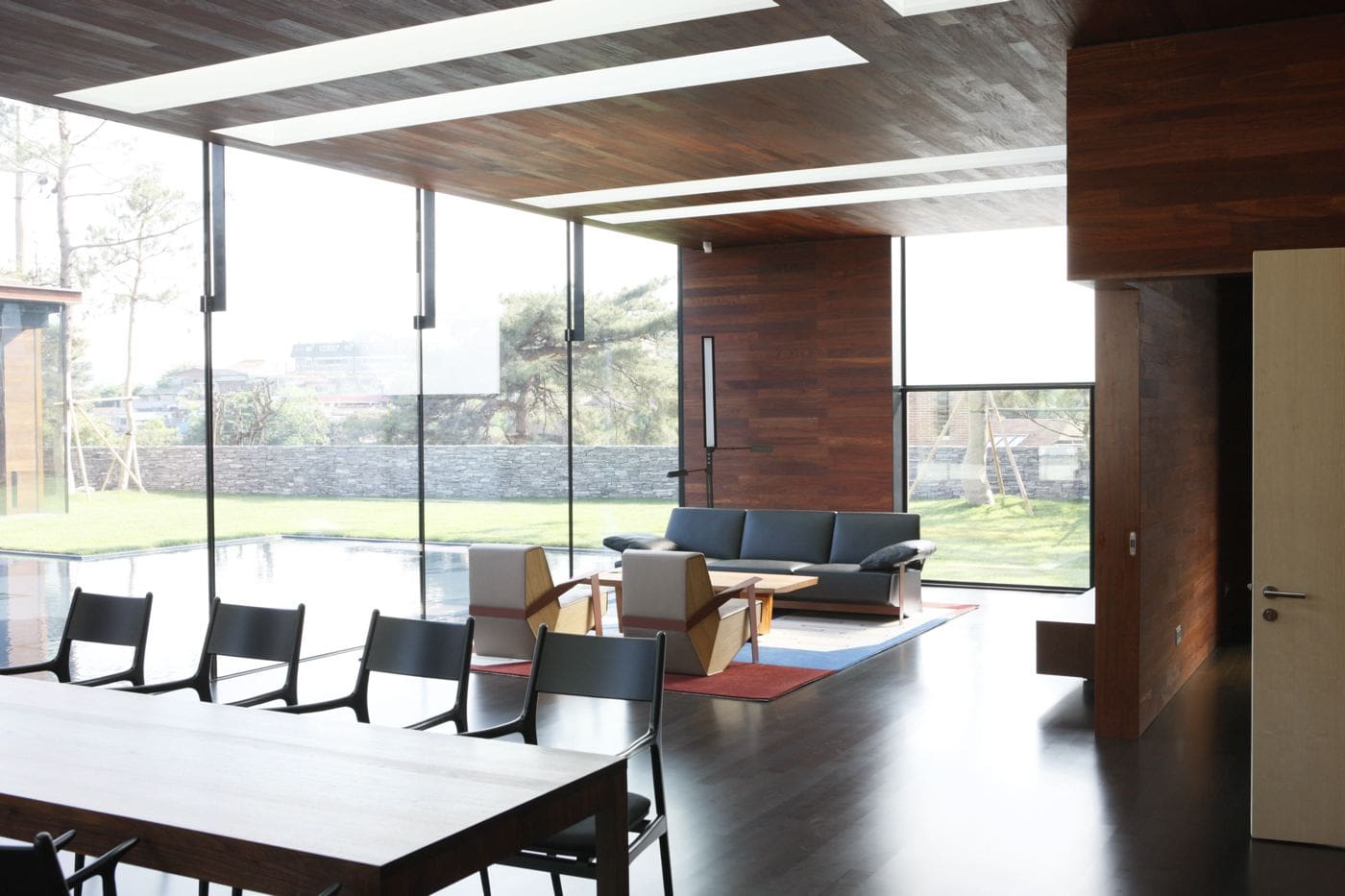

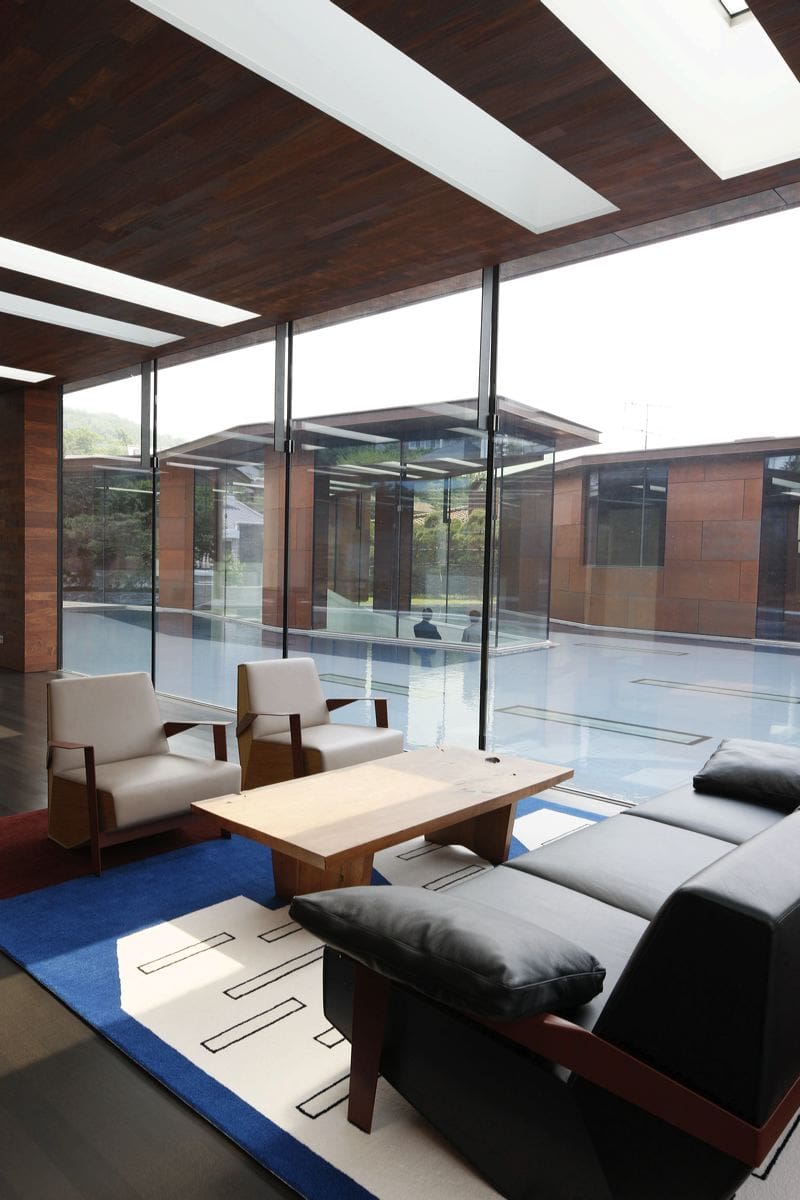

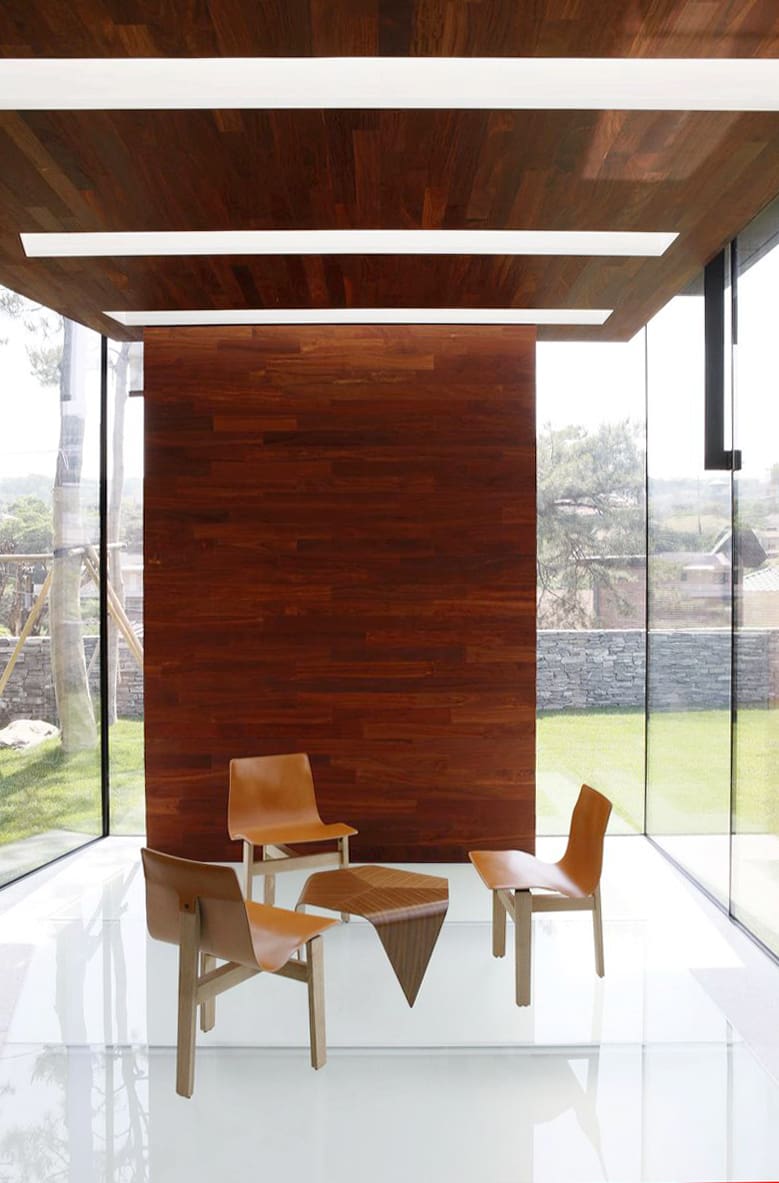

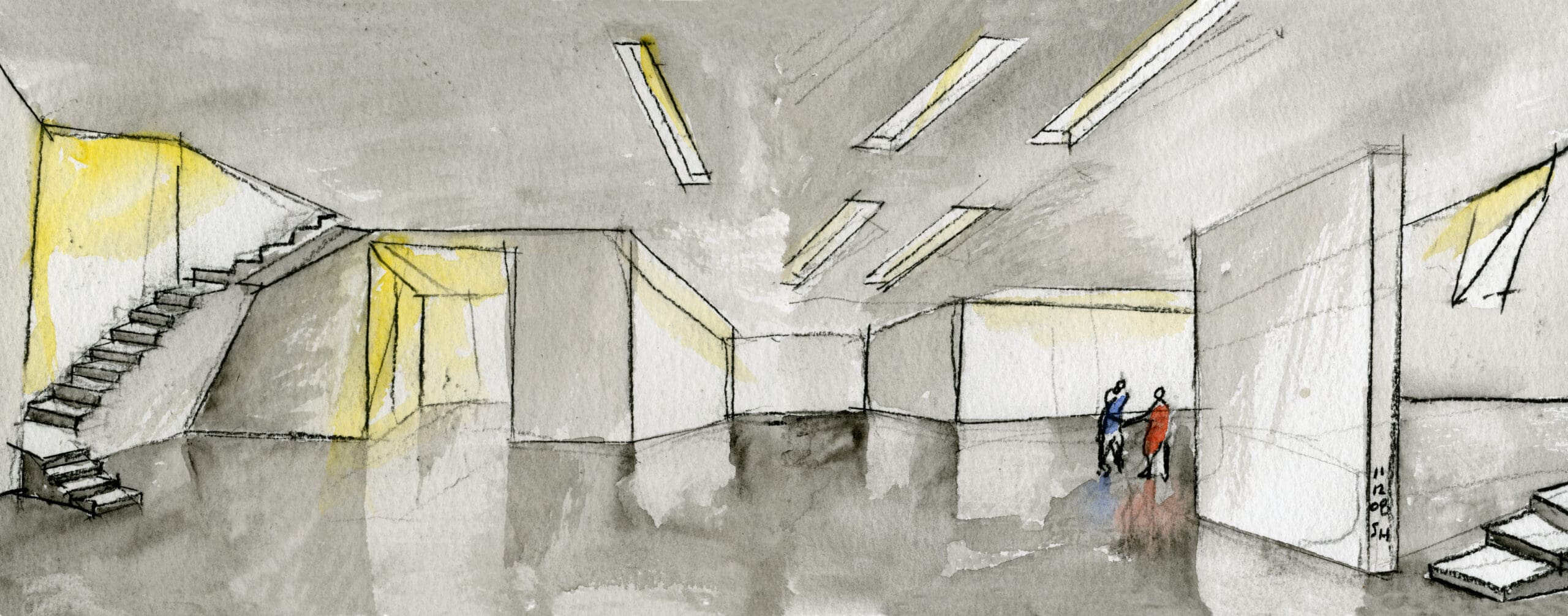

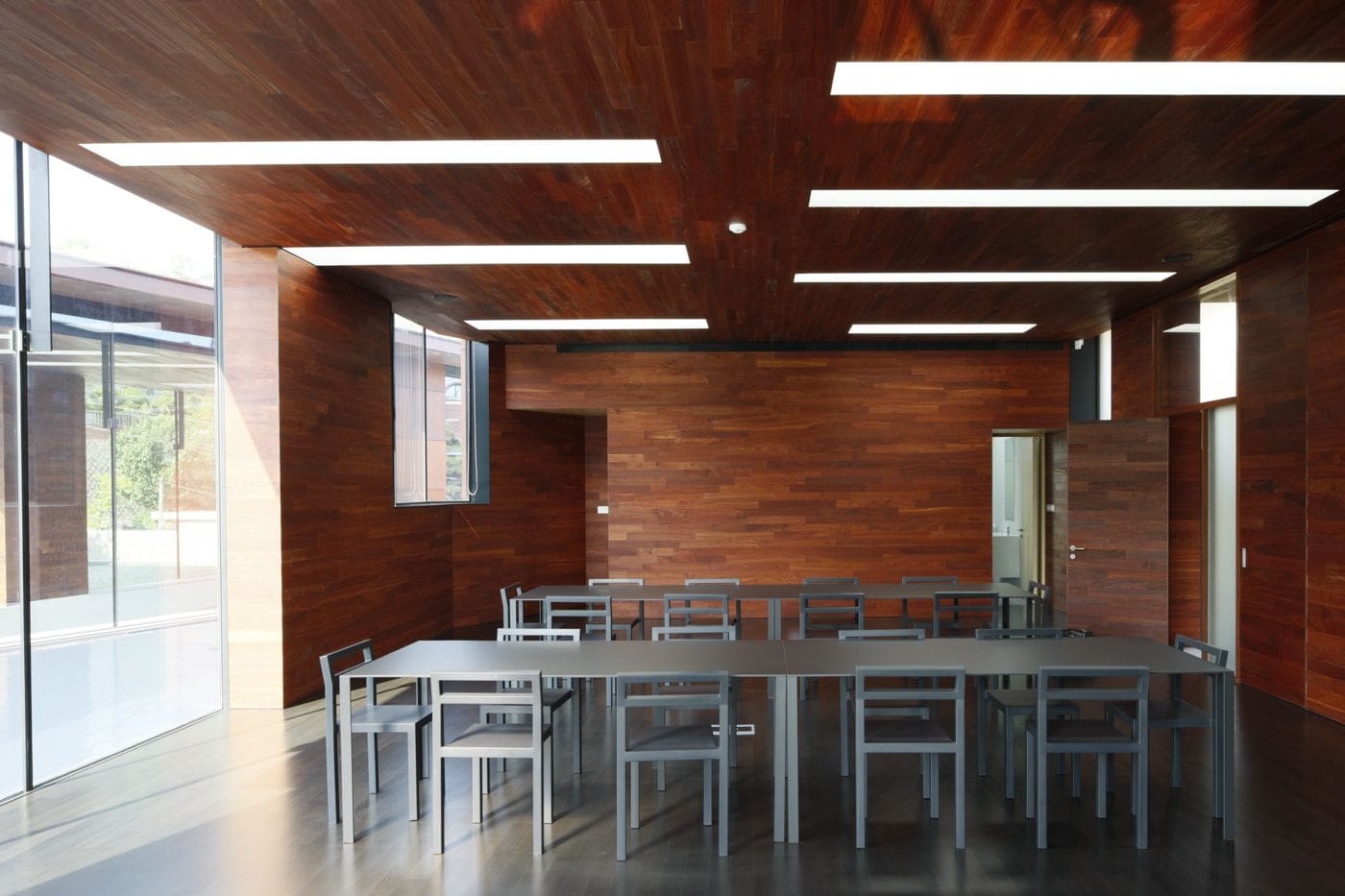

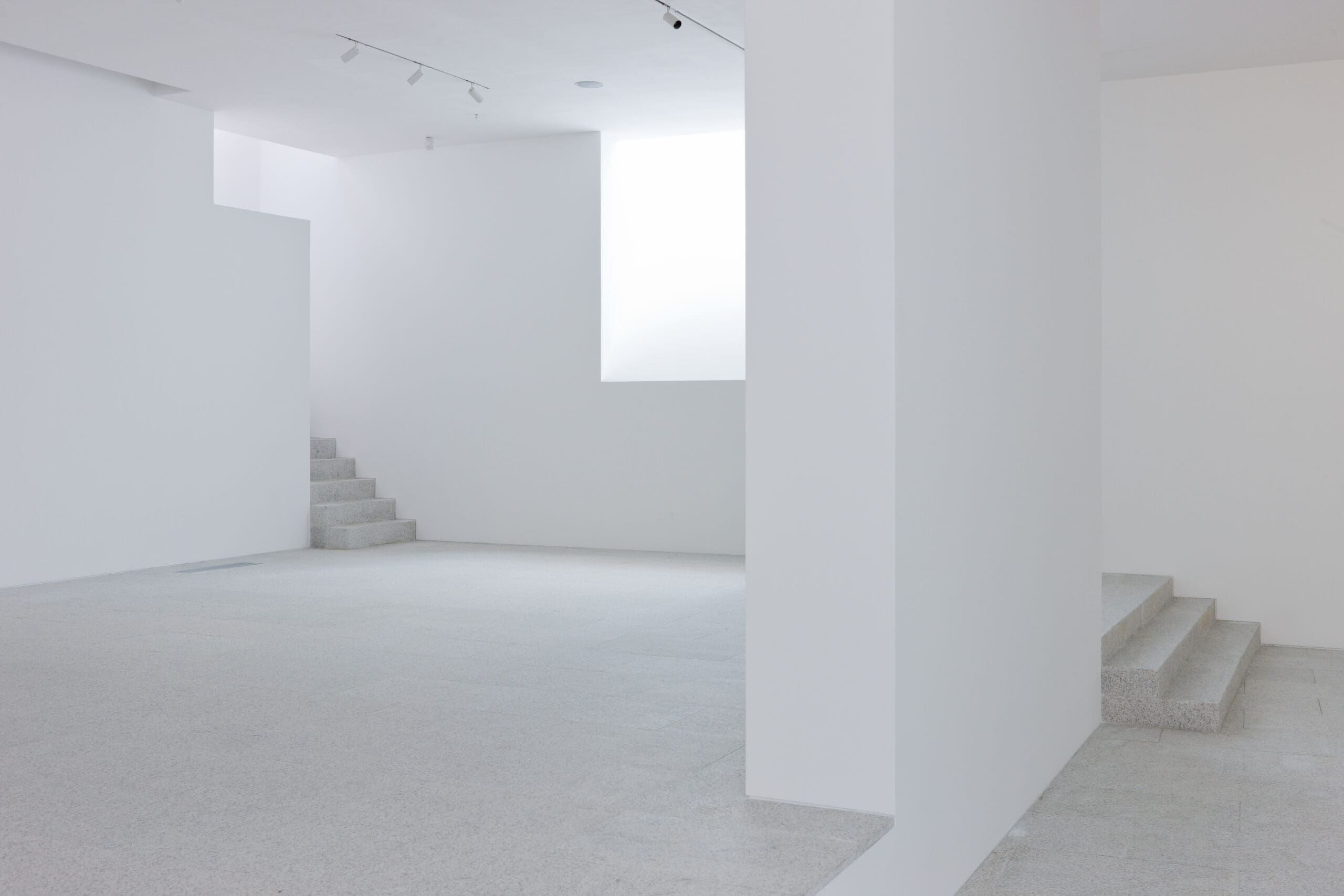

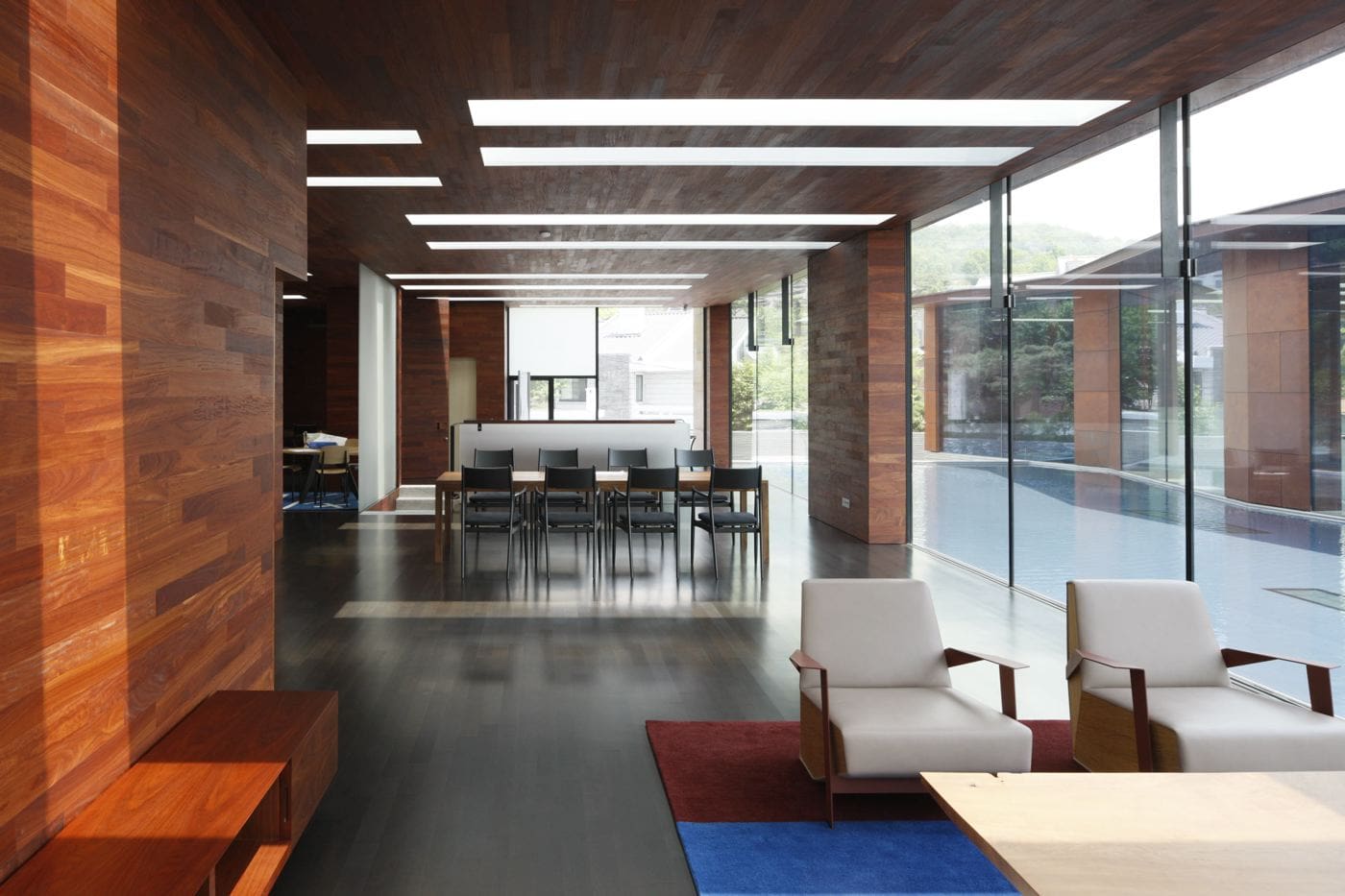

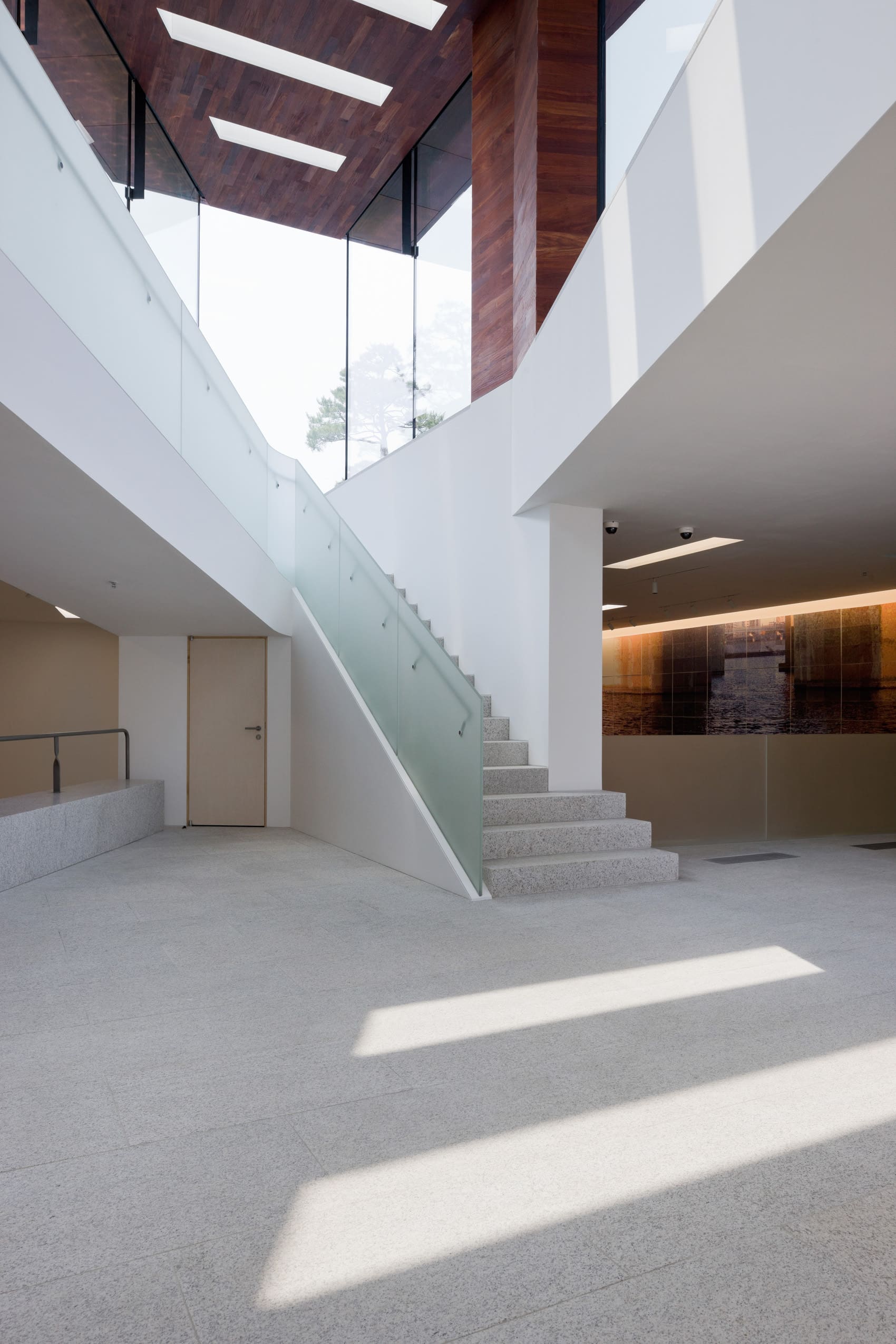

The red and charcoal stained wood interiors of the pavilions are activated by skylight strips of clear glass that are cut into the roof. Sunlight turns and bends around the inner spaces, animating them with the changing light of each season and throughout the day. Like a cesura in music, strips of glass lenses in the base of the pool break through the surface, bringing dappled light to the white plaster walls and white granite floor of the gallery below.

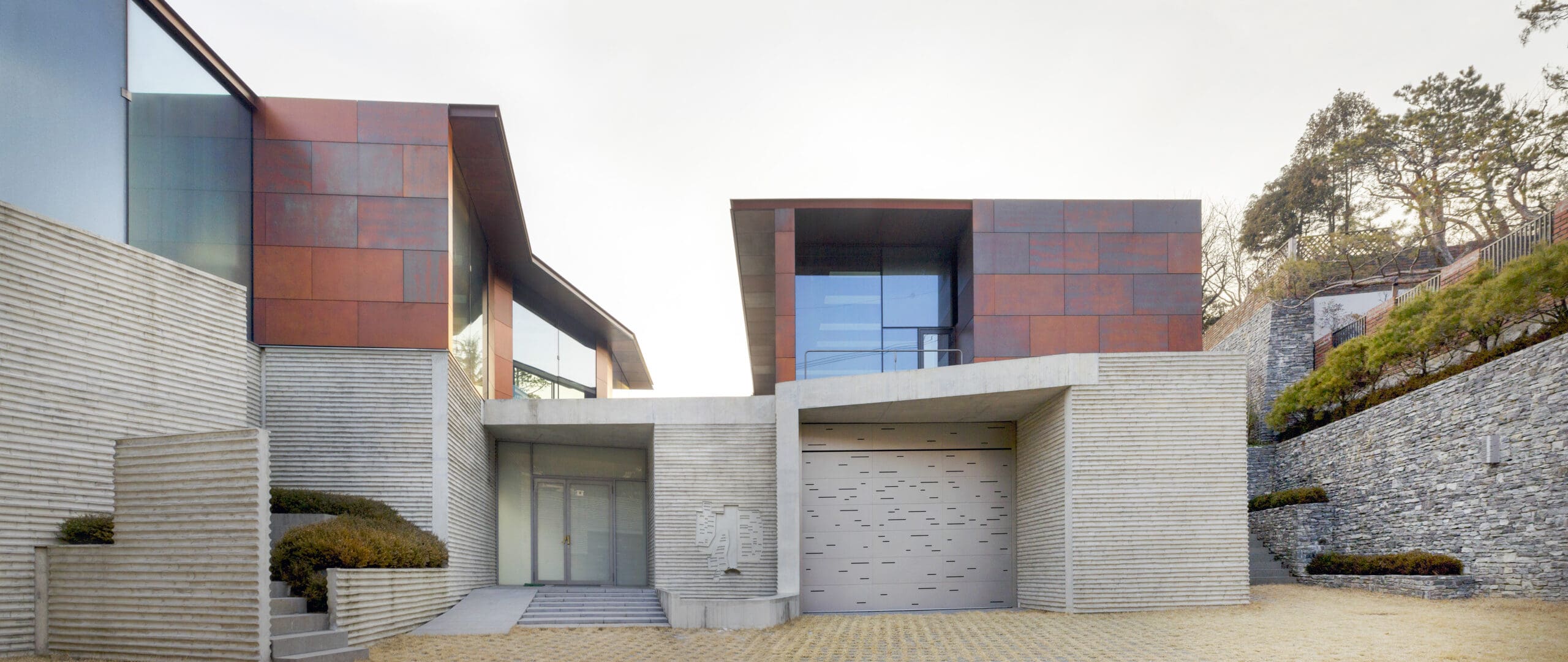

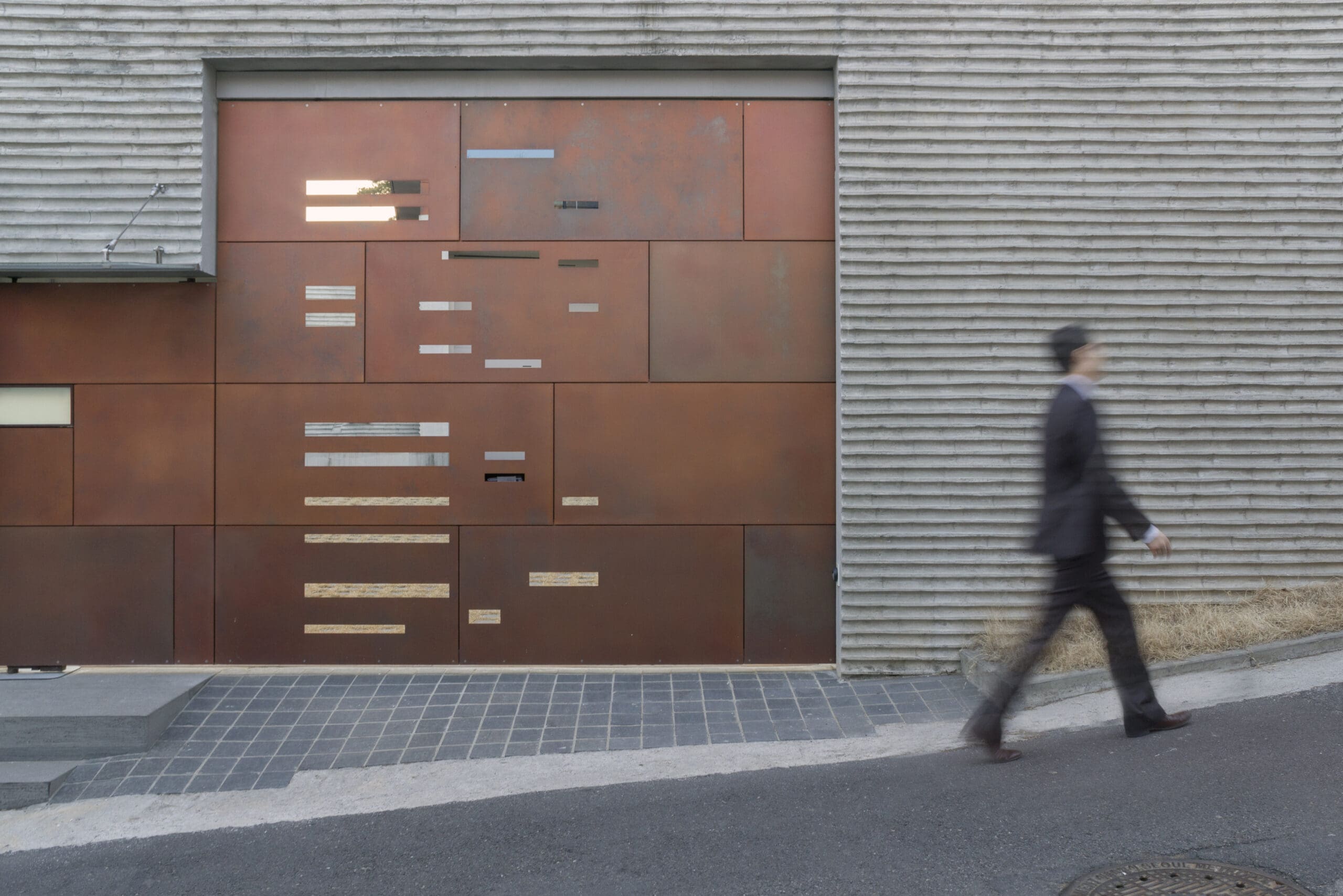

Exteriors are a rain screen of custom patinated copper, which ages naturally within the landscape.
The Daeyang Gallery and House is heated and cooled with geothermal wells.
FOR RESIDENTIAL ENQUIRIES
Molly Blieden, Managing Associate
t + 1 212 629-7262 x14
molly@stevenholl.com
Ecological Innovation +
– Geothermal heating & cooling
– Green & recycled water pools
– Natural light to all space
Videos +
- Daeyang Gallery and House: A Conversation with Steven Holl
- Daeyang Gallery and House
Credits +
architect
- Steven Holl Architects
Steven Holl (design architect, principal)
JongSeo Lee (associate in charge)
Annette Goderbauer (project advisor, associate)
Francesco Bartolozzi, Marcus Carter, Nick Gelpi, Jackie Luk, Fiorenza Matteoni, Rashid Satti, Dimitra Tsachrelia (project team)
- 2079
Chris McVoy (project advisor, senior partner)
local architect
- E.rae Architects
Inho Lee, Minhee Chung, Hyoungil Kim
structural engineer
- SQ Engineering
mechanical engineer
- Buksung HVAC+R Engineering
lighting consultant
- L'Observatoire International
facade panels
- Zahner
general contractor
- Jehyo
-
Awards +
- 2012 2012 EMIRATES GLASS LEAF AWARD
- 2012 ANNUAL DESIGN REVIEW AWARD
- 2013 AIA NY HONOR AWARD
- 2013 ARCHITIZER A+ AWARD JURY WINNER
